X774 - s-lhd-sop8

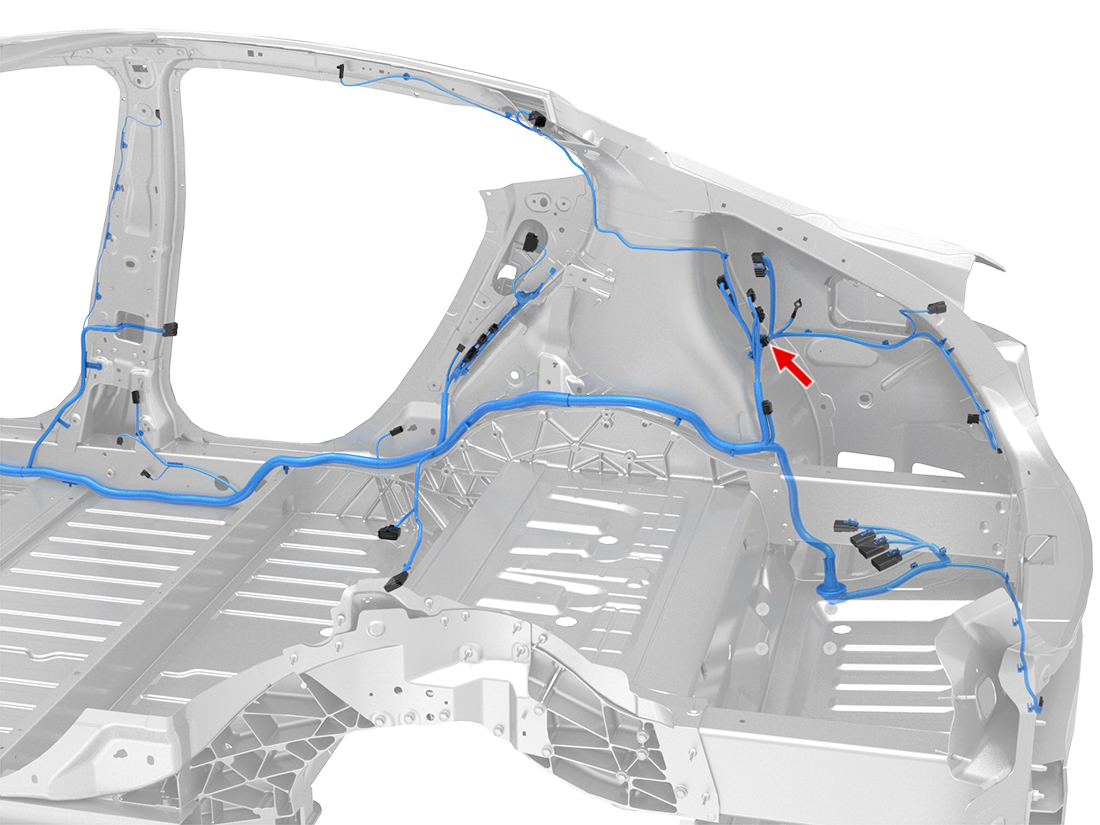

Location:
Connector Detail: sumitomo_6098-3927
Gender:
Color: BU
| Cav | Col | Gauge |
|---|---|---|
| 5 | WH/BU | 0.35 |
| 6 | WH/BU | 0.35 |
| 7 | WH/BU | 0.35 |
| 8 | BN/WH | 0.35 |
| 9 | BN/WH | 0.35 |
| 10 | BN/WH | 0.35 |
| 16 | BU | 0.35 |
| 17 | BU | 0.35 |
| 18 | BU | 0.35 |
| 19 | BN | 0.35 |
| 20 | BN | 0.35 |
| 21 | BN | 0.35 |
