X779 - s-lhd-sop8

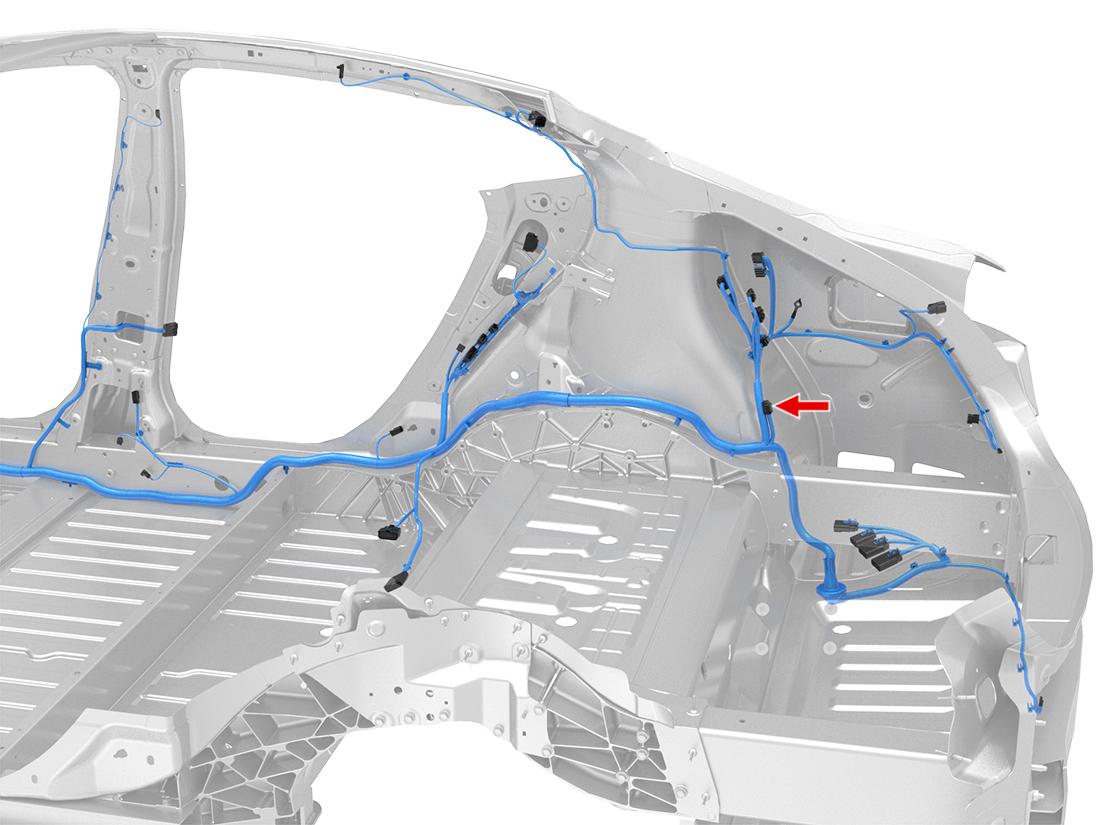

Location:
Connector Detail: sumitomo_6098-3926
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 2 | RD/WH | 0.5 |
| 3 | RD/WH | 0.35 |
| 4 | RD/WH | 0.35 |
| 5 | RD/WH | 0.5 |
| 6 | RD/WH | 0.35 |
| 7 | GN/WH | 0.35 |
| 8 | GN/WH | 0.35 |
| 9 | GN/WH | 0.35 |
| 10 | GN/WH | 0.35 |
| 13 | RD | 0.5 |
| 14 | RD | 0.35 |
| 15 | RD | 0.35 |
| 16 | RD | 0.5 |
| 17 | RD | 0.35 |
| 18 | GN | 0.35 |
| 19 | GN | 0.35 |
| 20 | GN | 0.35 |
| 21 | GN | 0.35 |
