X930F - s-lhd-sop8

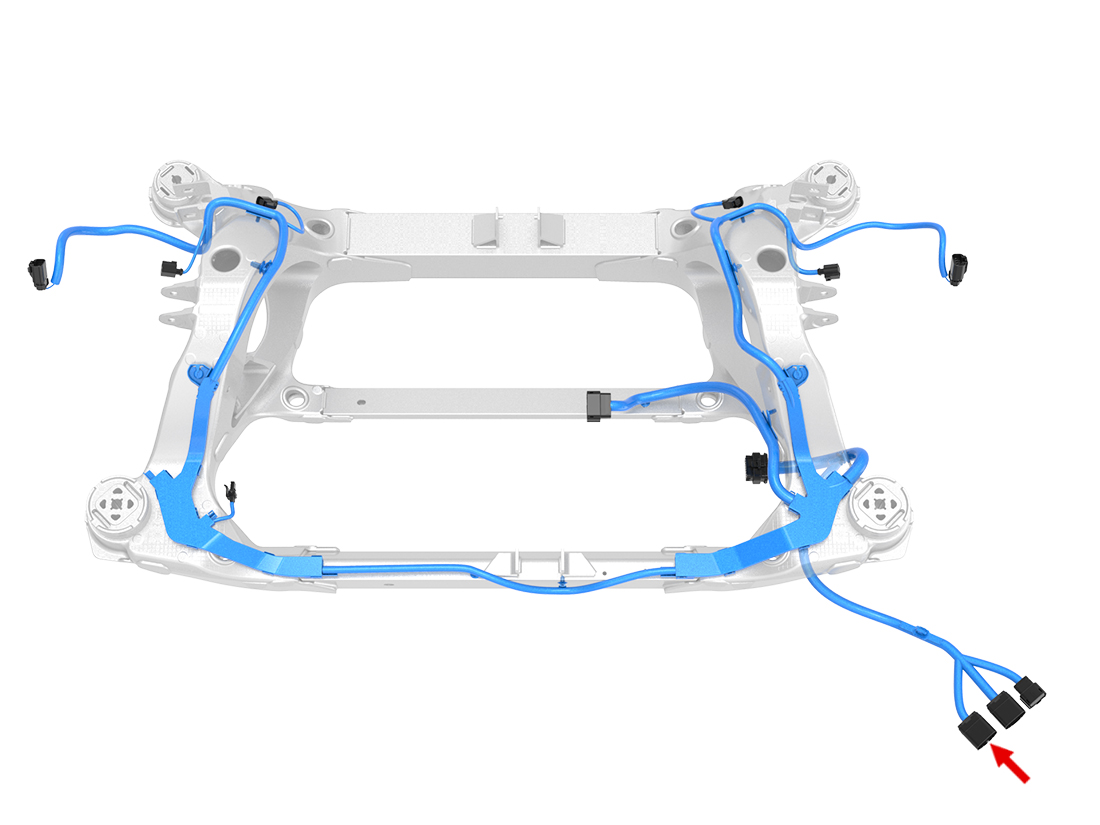

Location:
Connector Detail: fci_55251400
Gender: REC-STD
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 1 | GY | 2 |
| 2 | WH | 0.75 |
| 6 | BU/WH | 0.75 |
| 7 | RD/WH | 2 |
| 8 | BK/WH | 2 |
| 9 | OG | 0.75 |
| 13 | VT/WH | 0.75 |
| 14 | RD/VT | 2 |
