X931F - s-lhd-sop8

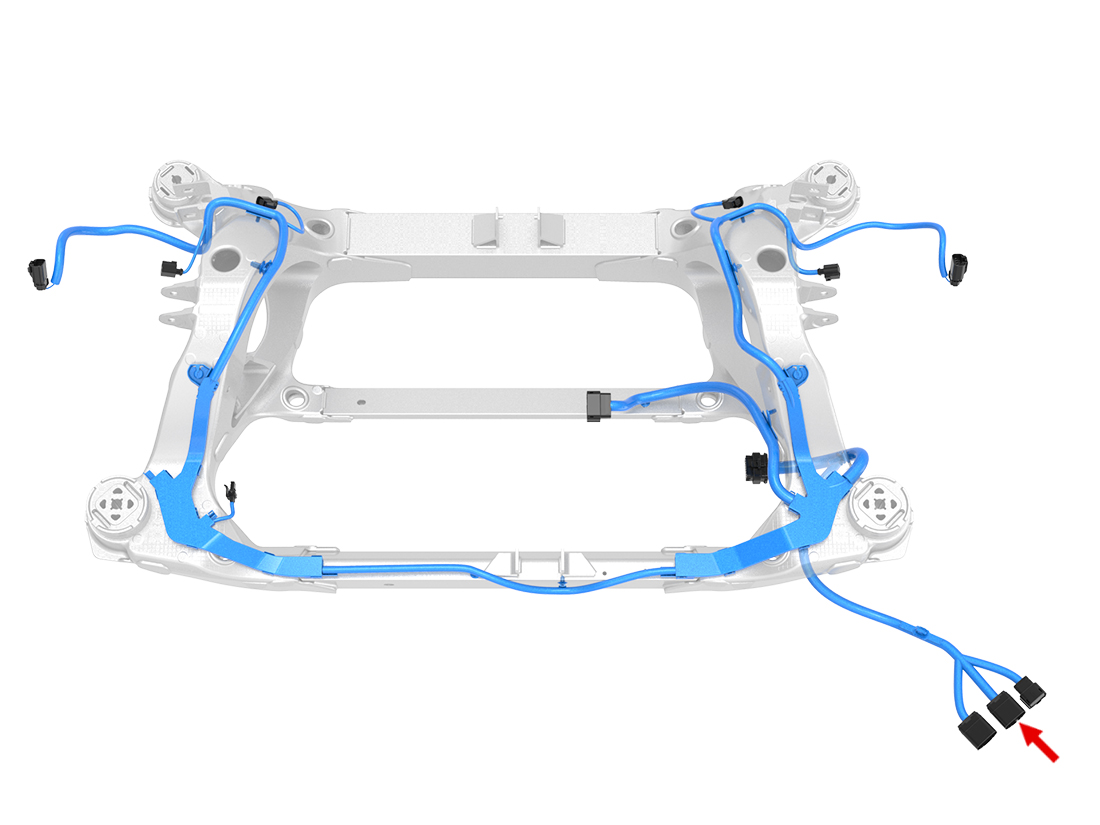

Location:

Connector Detail: fci_55251403

Gender: REC-STD

Color: GN

Cav	Col	Gauge
1	RD/BK	0.75
1	RD/BK	0.75
2	OG	0.5
2	OG	0.75
3	GY	0.5
3	GY	0.75
4	GN	0.5
4	GN	0.75
5	RD/YE	0.5
5	RD/YE	0.75
6	YE	0.75
6	YE	0.5
7	BK	0.75
7	BK	0.75
8	RD/BU	0.75
8	RD/BU	0.75
9	BU/WH	0.5
9	BU/WH	0.75
10	BU	0.5
10	BU	0.75
11	BK/VT	0.5
11	BK/VT	0.75
12	GN/WH	0.5
12	GN/WH	0.75
13	WH	0.5
13	WH	0.75
14	VT/WH	0.75
14	VT/WH	0.75
