X932M - s-lhd-sop8

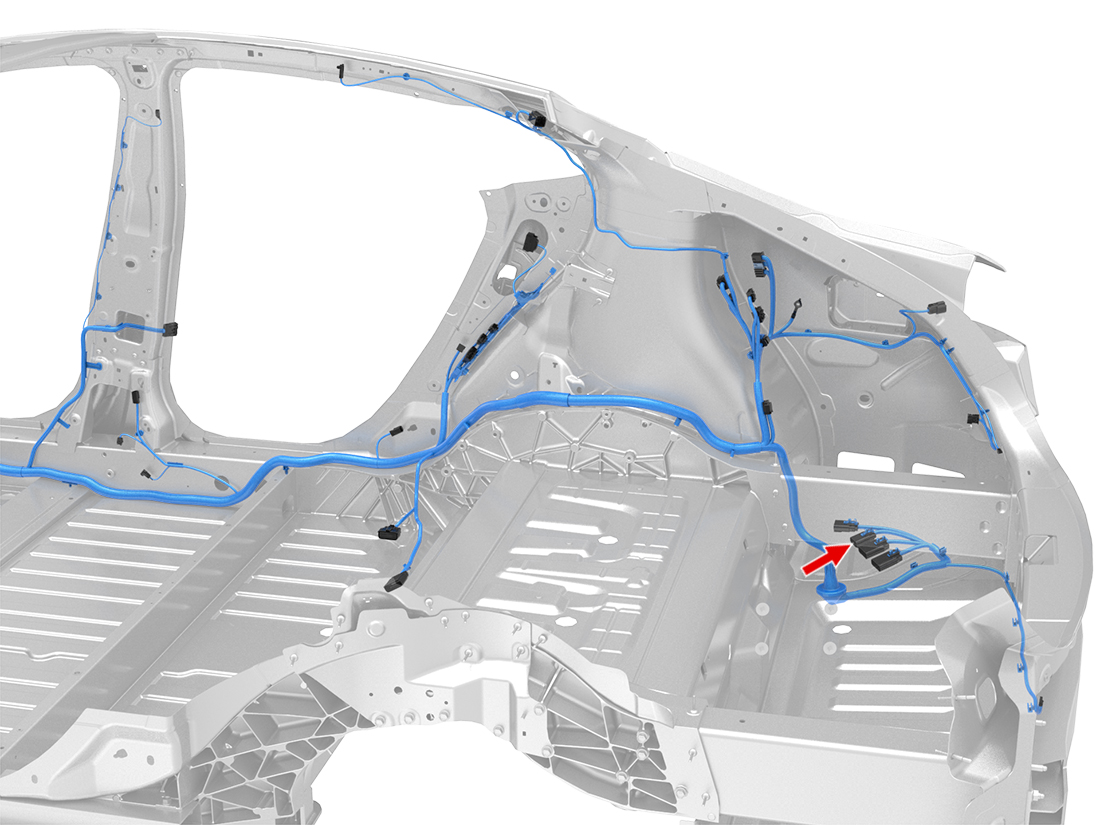

Location:
Connector Detail: molex_33482-1261
Gender: UNSPEC
Color: Dark Gray
| Cav | Col | Gauge |
|---|---|---|
| 1 | RD/GN | 0.5 |
| 2 | VT | 0.5 |
| 3 | BK | 0.5 |
| 4 | RD/WH | 0.5 |
| 5 | GN/WH | 0.5 |
| 6 | GN | 0.5 |
| 7 | RD/VT | 0.5 |
| 7 | RD/VT | 0.5 |
| 8 | BN | 0.5 |
| 8 | BN | 0.5 |
| 9 | BK/VT | 0.5 |
| 9 | BK/VT | 0.5 |
| 10 | RD | 0.5 |
| 11 | BK/WH | 0.5 |
| 12 | WH | 0.5 |
