X943M - s-lhd-sop8

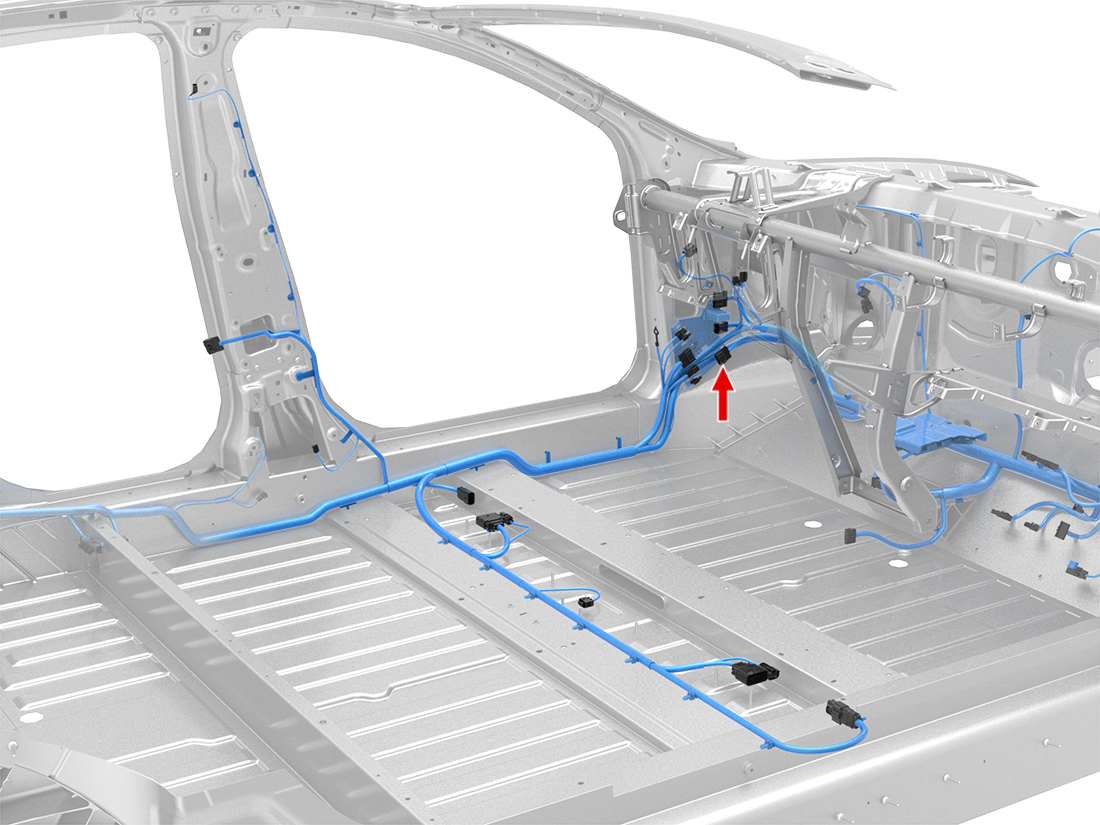

Location:
Connector Detail: sumitomo_6098-5600
Gender:
Color: GY
| Cav | Col | Gauge |
|---|---|---|
| 1 | GY | 1.5 |
| 2 | RD | 0.5 |
| 3 | YE/WH | 0.35 |
| 4 | WH | 0.5 |
| 5 | OG/BK | 0.5 |
| 6 | BN/WH | 0.35 |
| 7 | RD/VT | 0.5 |
| 8 | OG | 0.35 |
| 9 | WH | 0.35 |
| 10 | BU/WH | 1.5 |
| 11 | BK | 2 |
| 14 | GY/WH | 0.5 |
| 15 | BN | 0.35 |
| 16 | GN | 0.35 |
| 17 | OG | 0.5 |
| 18 | BU | 1.5 |
