X944F - s-lhd-sop8

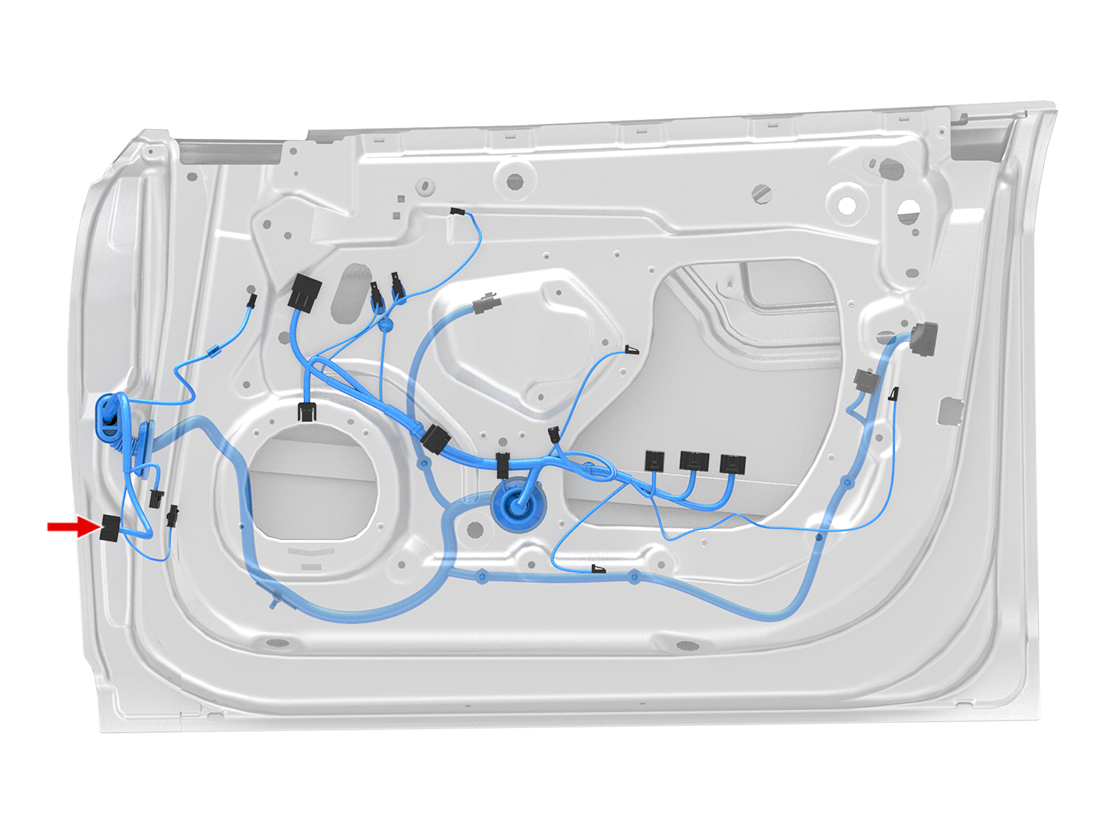

Location:
Connector Detail: sumitomo_6098-5609
Gender:
Color: GY
| Cav | Col | Gauge |
|---|---|---|
| 1 | WH | 2 |
| 2 | BN | 0.5 |
| 4 | LG | 0.35 |
| 5 | WH/RD | 0.5 |
| 6 | WH/BN | 0.35 |
| 7 | VT/GY | 0.35 |
| 8 | OG | 0.35 |
| 9 | GY | 0.35 |
| 10 | GY | 2 |
| 11 | BK | 2 |
| 13 | BK | 0.35 |
| 14 | WH/DB | 0.5 |
| 15 | TN | 0.35 |
| 16 | LG | 0.35 |
| 17 | WH | 0.35 |
| 18 | GY/BK | 2 |
