X948M - s-lhd-sop8

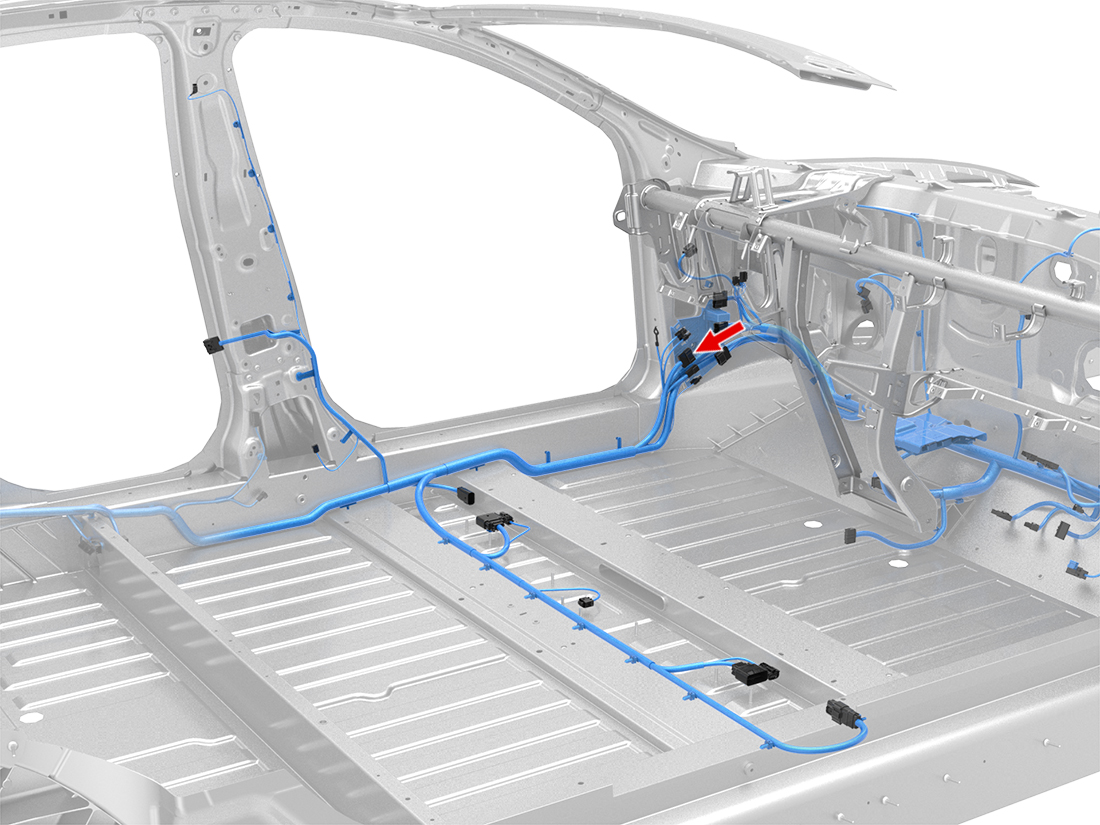

Location:

Connector Detail: sumitomo_6098-5631

Gender:

Color: WH

Cav	Col	Gauge
1	RD/WH	1
1	RD/WH	0.75
2	BN	1
2	BN	0.75
3	WH/RD	0.35
3	BN	0.35
4	WH	0.35
4	WH	0.35
5	WH/BK	0.35
6	GY	0.35
7	RD	0.5
8	OG	0.35
8	OG	0.35
9	BN	0.35
9	BN	0.35
10	VT	1
10	VT	0.75
11	RD/VT	1
11	RD/VT	0.75
12	BK	1
13	WH/BU	0.35
14	RD/GN	0.35
15	BK/VT	0.35
16	RD/GY	0.35
17	BU	0.35
18	BK	1
