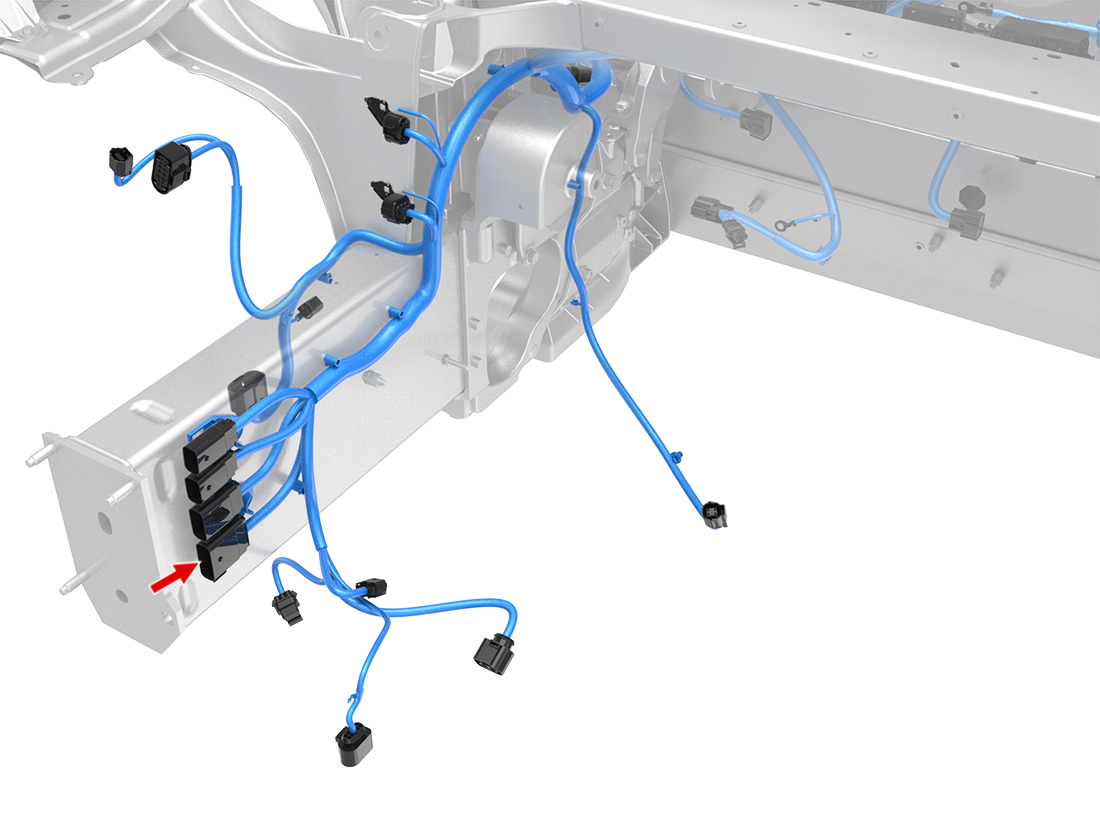

X966M - s-lhd-sop8
Location:
Connector Detail: molex_33482-2102
Gender: UNSPEC
Color: GY
| Cav | Col | Gauge |
|---|---|---|
| 1 | RD/YE | 0.5 |
| 2 | RD/BU | 0.5 |
| 3 | GN | 0.35 |
| 4 | VT | 0.75 |
| 5 | BK | 0.75 |
| 6 | GN | 0.35 |
| 7 | WH | 0.35 |
| 8 | BK | 0.5 |
| 9 | RD/VT | 0.35 |
| 10 | WH/BK | 0.35 |
| 12 | BN/WH | 0.35 |
| 13 | GY | 0.35 |
| 14 | RD/GY | 0.75 |
| 15 | BK | 0.75 |
| 16 | VT | 0.35 |
| 17 | WH | 0.35 |
| 18 | BK/VT | 0.5 |
| 19 | RD/GN | 0.35 |
| 20 | GY/WH | 0.35 |
