X982M - s-lhd-sop8

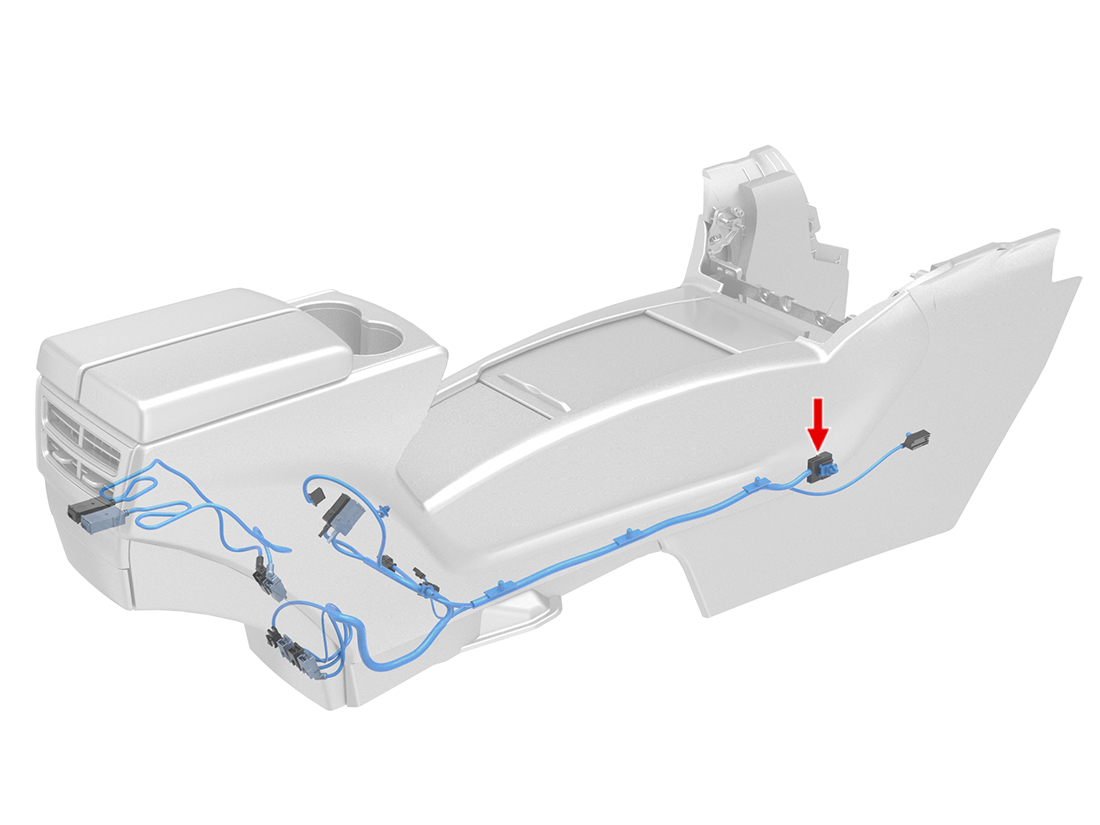

Location:
Connector Detail: sumitomo_6098-5594
Gender:
Color: WH
| Cav | Col | Gauge |
|---|---|---|
| 1 | RD | 0.75 |
| 3 | RD | 0.35 |
| 4 | BK | 0.35 |
| 5 | SI | 0.35 |
| 10 | BK/WH | 0.75 |
| 11 | RD | 1 |
| 13 | OG | 0.35 |
| 14 | VT | 0.35 |
| 15 | GY | 0.35 |
| 16 | RD/WH | 0.35 |
| 18 | BK | 1 |
