X312 - s-lhd-sop9

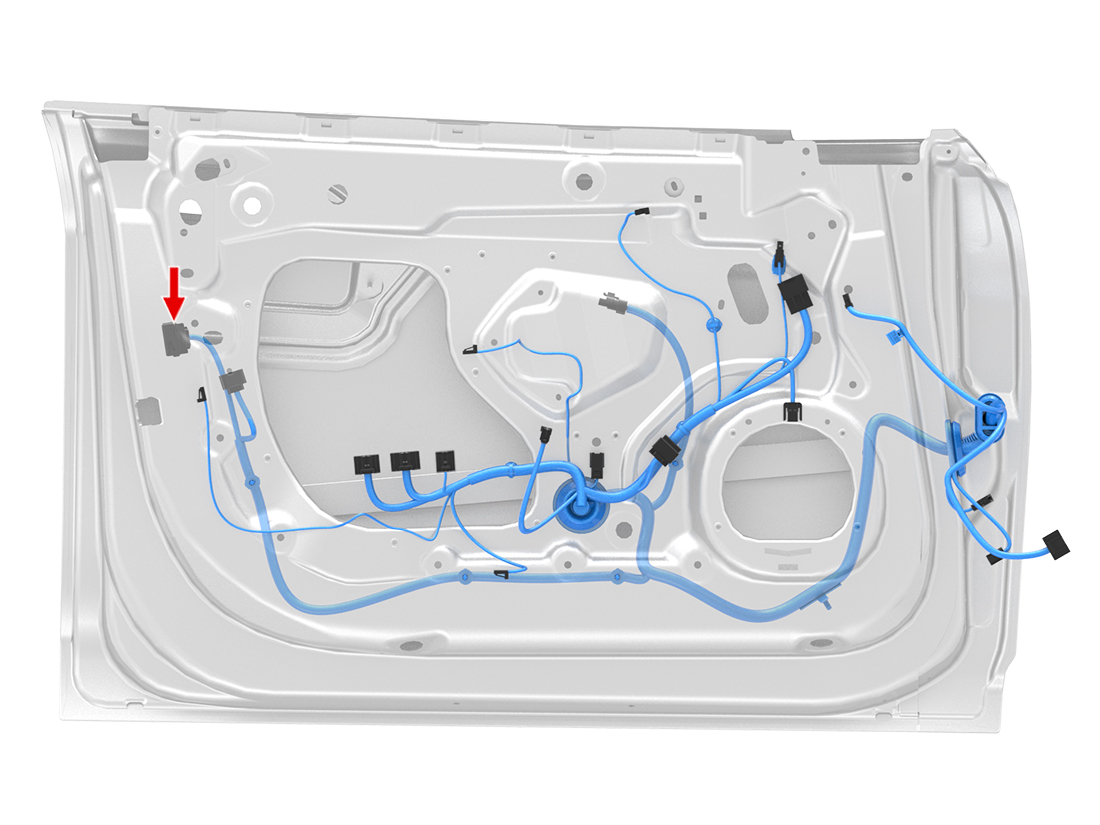

Location:
Connector Detail: amp_6-1355688-5
Gender: REC-STD
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 3 | GY | 0.35 |
| 4 | BK | 0.35 |
| 6 | OG | 0.35 |
| 7 | GY/WH | 0.35 |
| 8 | BK | 0.35 |
2012-2020 Model S Connector Reference
