X315 - s-lhd-sop9

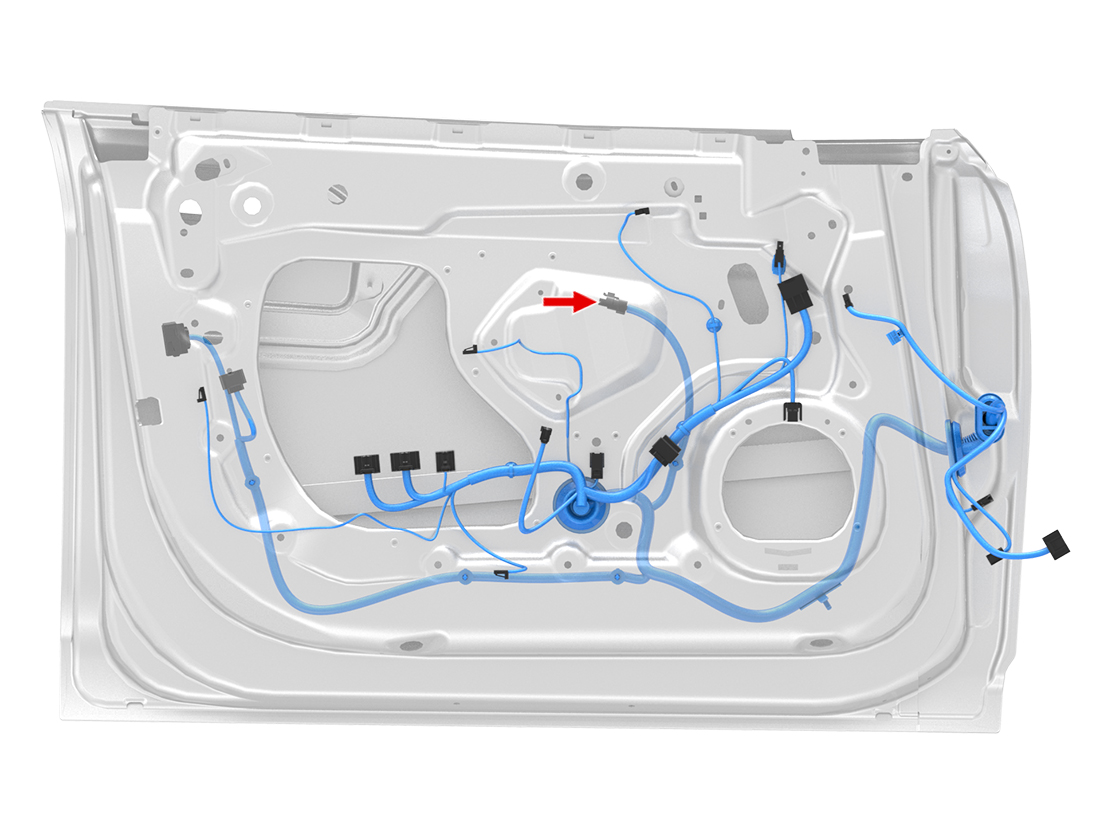

Location:
Connector Detail: fci_211pc069s8049
Gender:
Color: Gray
| Cav | Col | Gauge |
|---|---|---|
| 1 | BU | 0.5 |
| 2 | OG | 0.5 |
| 3 | GY | 1.5 |
| 4 | BK | 1.5 |
| 5 | WH | 0.5 |
| 6 | WH/RD | 0.5 |
