X765 - s-lhd-sop9

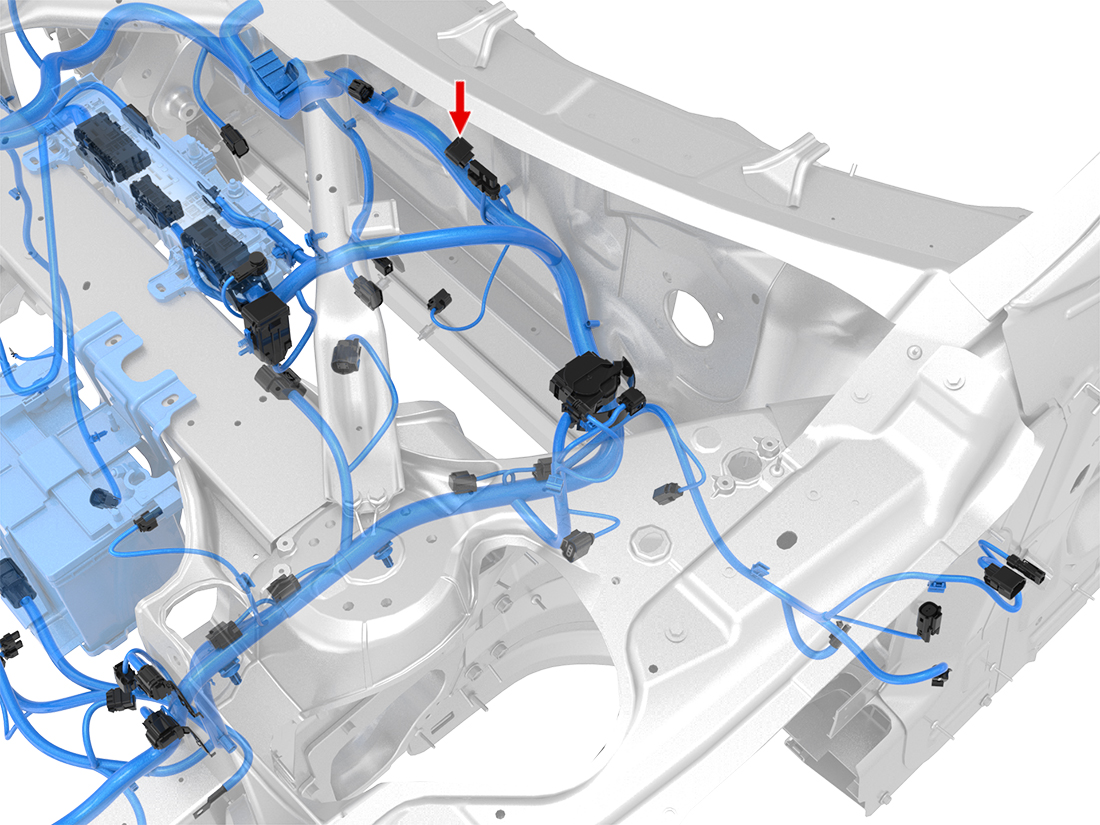

Location:
Connector Detail: yazaki_7283-8856-30
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 1 | YE/WH | 0.35 |
| 2 | YE/WH | 0.5 |
| 4 | YE | 0.35 |
| 5 | YE | 0.5 |
| 6 | YE/WH | 0.35 |
| 7 | YE/WH | 0.35 |
| 9 | YE | 0.35 |
| 10 | YE | 0.35 |
