X021 - s-rhd-sop1

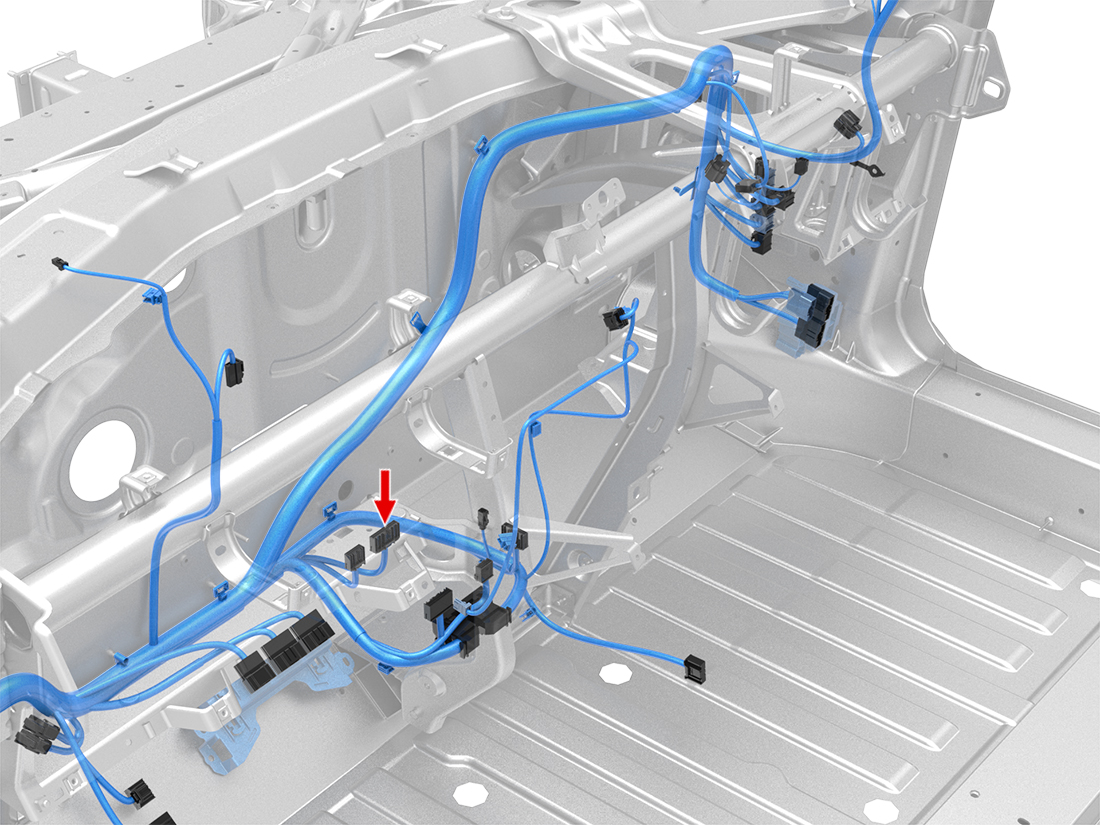

Location:
Connector Detail: jae_mx34036sf1
Gender:
Color: Gray
| Cav | Col | Gauge |
|---|---|---|
| 1 | BK/WH | 0.5 |
| 2 | LG/RD | 0.35 |
| 3 | LG/WH | 0.35 |
| 4 | GY/RD | 0.35 |
| 5 | GY/BK | 0.35 |
| 6 | GY/WH | 0.5 |
| 11 | VT/WH | 0.5 |
| 12 | VT/GY | 0.5 |
| 14 | TN/DB | 0.5 |
| 15 | TN | 0.35 |
| 17 | PK/YE | 0.5 |
| 22 | BK/GY | 0.5 |
| 23 | RD/PK | 0.35 |
| 24 | GY/DB | 0.35 |
| 25 | GY/BN | 0.35 |
| 26 | GY | 0.35 |
| 27 | DG/VT | 0.35 |
| 31 | WH/BN | 0.35 |
| 36 | OG/DG | 0.35 |
