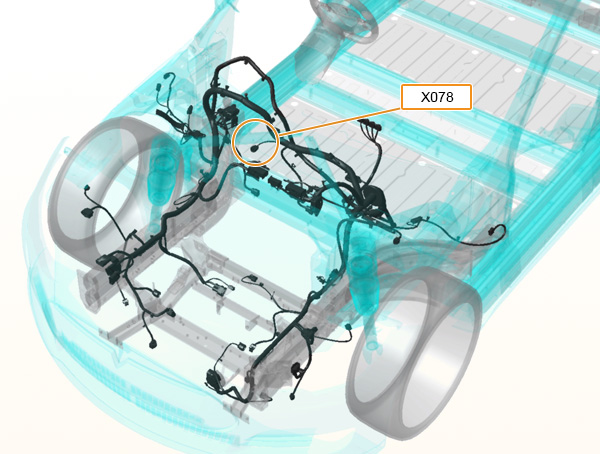

X078 - s-rhd-sop1
Location:
Connector Detail: sumitomo_6189-1105
Gender:
Color: Gray
| Cav | Col | Gauge |
|---|---|---|
| 1 | OG/RD | 1 |
| 2 | BK | 1 |
| 3 | GY/DG | 0.35 |
| 4 | GY/DB | 0.35 |
