X087 - s-rhd-sop1

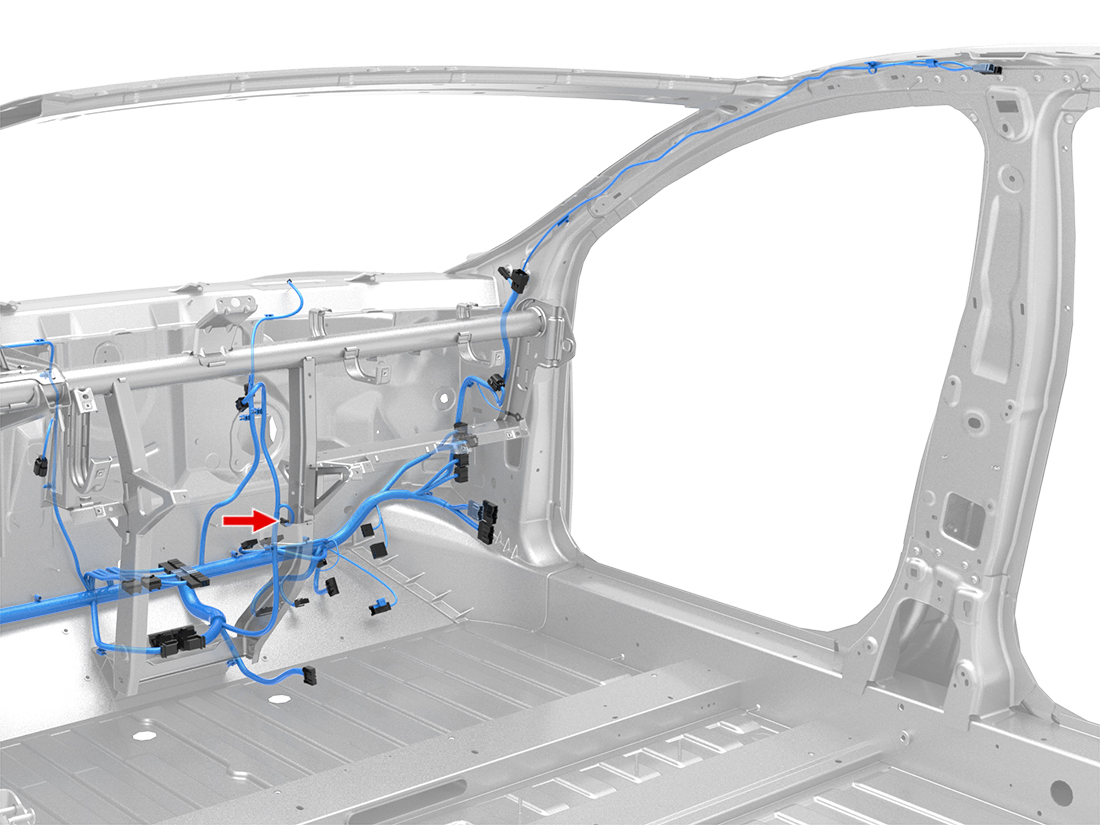

Location:
Connector Detail: amp_936119-1
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 1 | BK | 0.5 |
| 2 | VT | 0.5 |
| 3 | VT/GY | 0.5 |
| 4 | YE | 0.5 |
2012-2020 Model S Connector Reference
