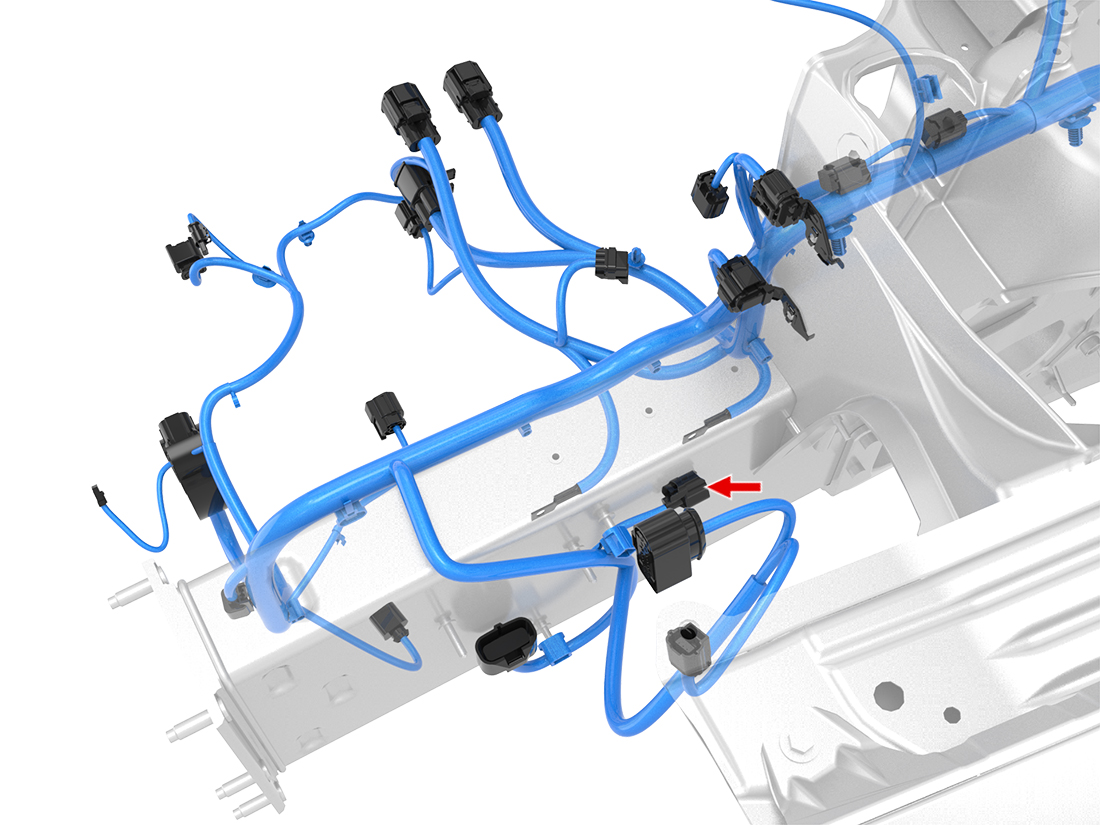

X111 - s-rhd-sop1
Location:
Connector Detail: molex_34062-0023
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 1 | PK | 0.5 |
| 2 | YE | 0.5 |
2012-2020 Model S Connector Reference
