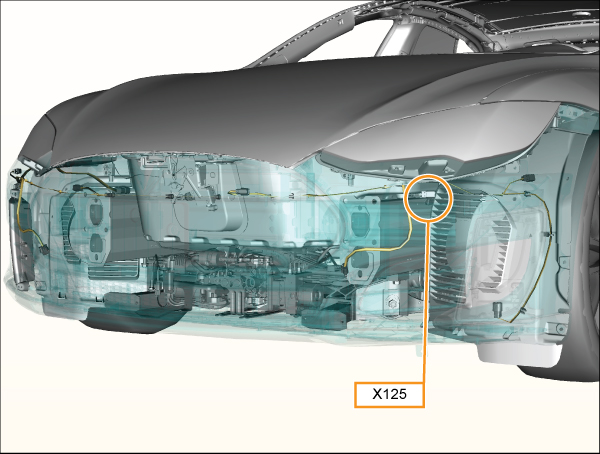

X125 - s-rhd-sop1
Location:
Connector Detail: molex_31403-3700
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 1 | TN | 0.35 |
| 2 | WH/VT | 0.35 |
| 3 | RD | 0.35 |
2012-2020 Model S Connector Reference
