X130 - s-rhd-sop1

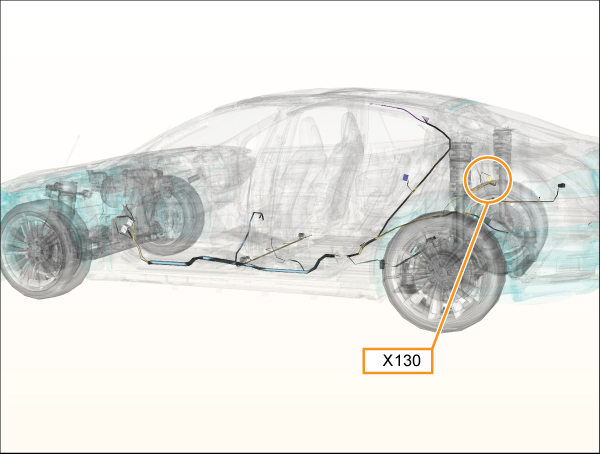

Location:
Connector Detail: molex_34729-0081
Gender:
Color: LightGray
| Cav | Col | Gauge |
|---|---|---|
| 1 | WH/RD | 0.5 |
| 2 | OG/WH | 0.5 |
| 3 | WH/DG | 0.5 |
| 4 | WH/BN | 0.5 |
| 5 | WH/DB | 0.5 |
| 6 | WH/BK | 0.5 |
2012-2020 Model S Connector Reference
