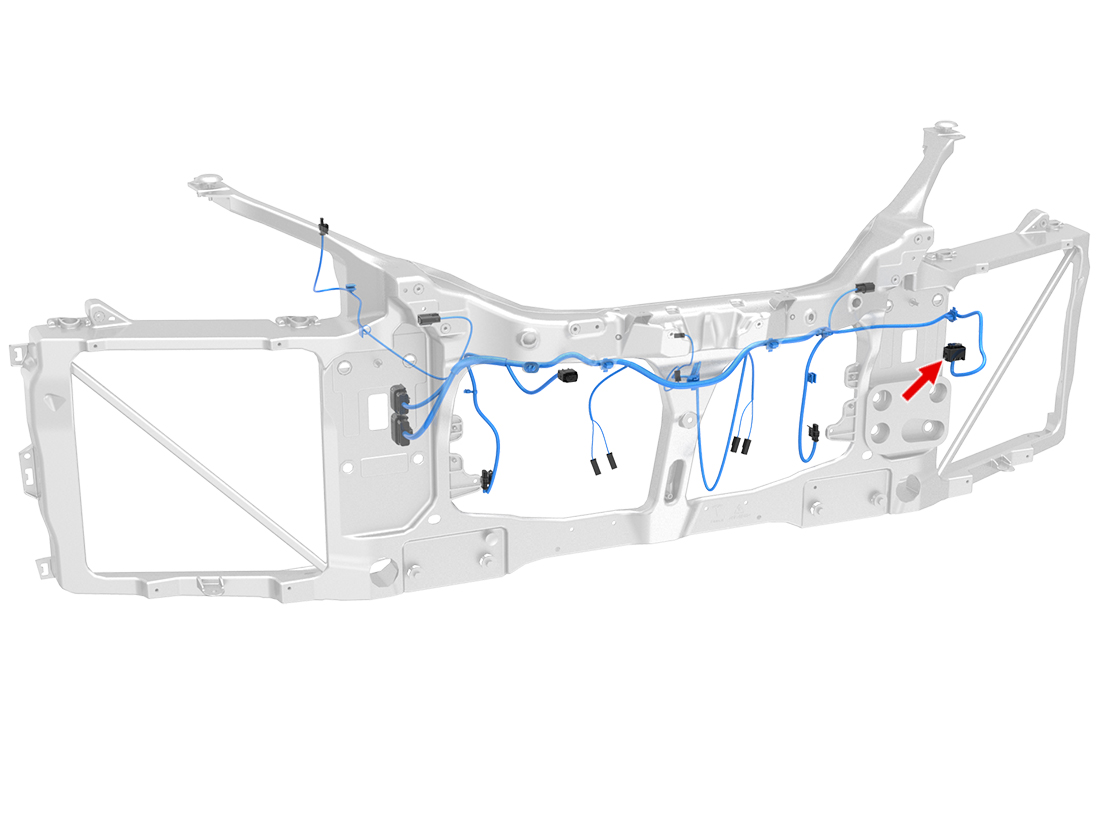

X138 - s-rhd-sop1
Location:
Connector Detail: amp_1-1534229-1
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 2 | DG/WH | 0.5 |
| 3 | DG | 0.5 |
| 5 | BK | 0.5 |
| 7 | BN | 0.5 |
| 8 | WH/GY | 0.5 |
2012-2020 Model S Connector Reference
