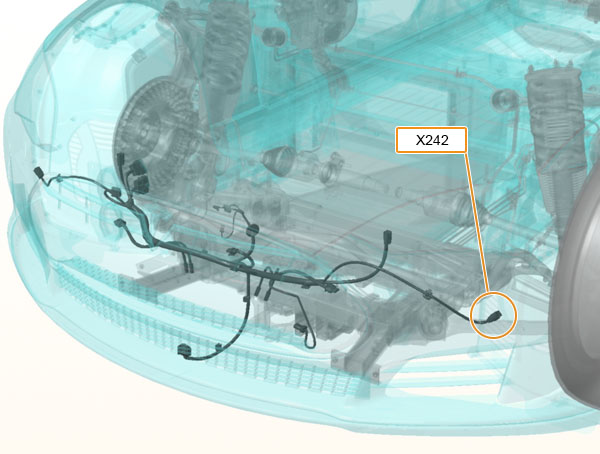

X242 - s-rhd-sop1
Location:
Connector Detail: molex_31403-2600
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 1 | PK/DB | 0.5 |
| 2 | DG/DB | 0.5 |
2012-2020 Model S Connector Reference
