X385 - s-rhd-sop1

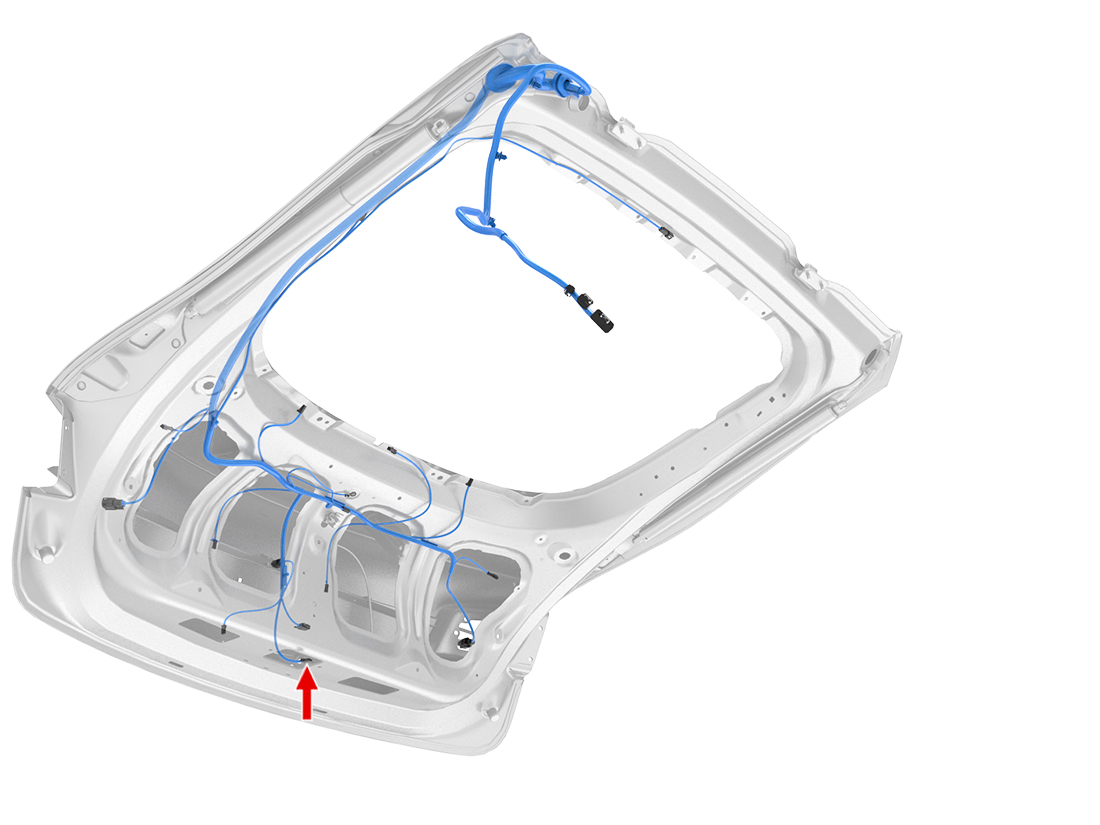

Location:
Connector Detail: amp_1241634-1
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 1 | TN/OG | 0.5 |
| 2 | BK | 0.75 |
| 3 | TN/DG | 0.5 |
| 4 | VT/DG | 0.35 |
2012-2020 Model S Connector Reference
