X405 - s-rhd-sop1

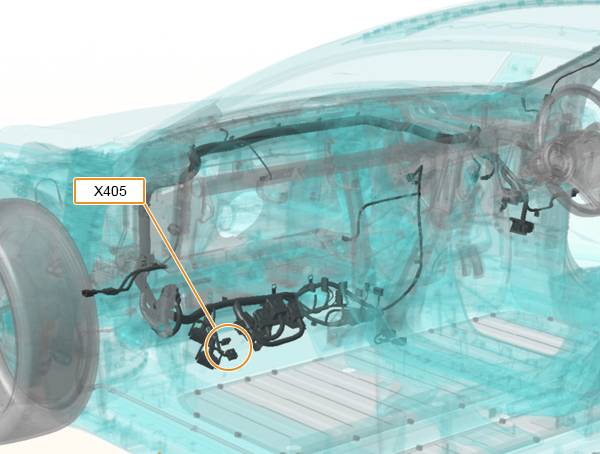

Location:
Connector Detail: molex_31372-1000
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 1 | WH/BK | 0.5 |
| 2 | BK/GY | 0.5 |
| 4 | BN | 0.5 |
| 5 | RD/GY | 1 |
| 6 | BK/GY | 1 |
| 7 | BK | 1.5 |
| 8 | YE/GY | 2 |
| 9 | RD/WH | 1 |
| 10 | BK/WH | 1 |
