X440 - s-rhd-sop1

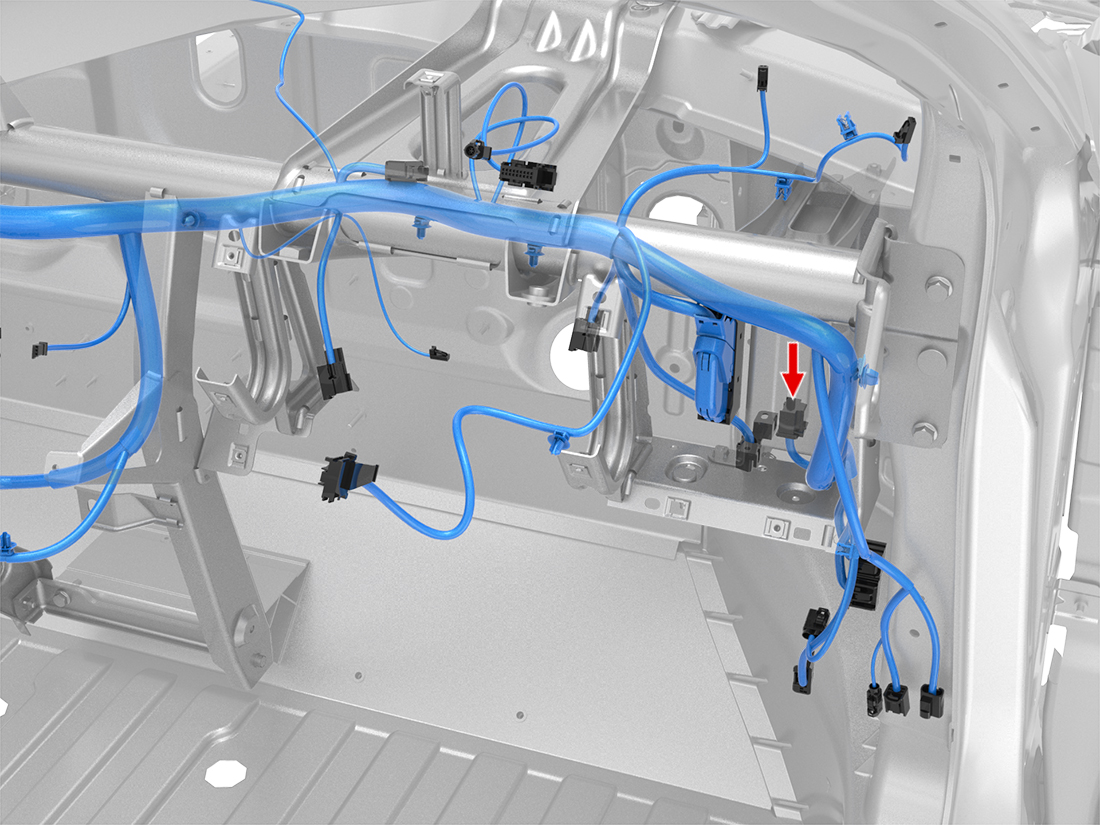

Location:
Connector Detail: molex_34729-0160
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 1 | YE/OG | 0.5 |
| 5 | SH | 5.01 |
| 6 | BN | 0.35 |
| 7 | GY | 0.35 |
| 8 | BK | 0.5 |
| 10 | BN/WH | 0.5 |
| 11 | BN | 0.5 |
| 13 | SH | 5.01 |
| 14 | DB | 0.35 |
| 15 | LB/BK | 0.35 |
| 16 | BK | 0.5 |
