X900M - s-rhd-sop1

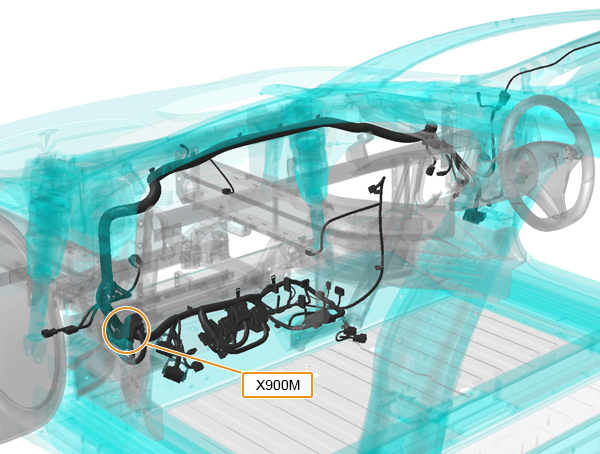

Location:
Connector Detail: yazaki_7282-4190-30
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 1 | GY | 2 |
| 2 | GY/BK | 2 |
| 3 | YE/BN | 2 |
| 4 | BK | 2 |
| 5 | RD/YE | 2 |
| 6 | DG | 2 |
| 7 | DG/BK | 2 |
| 10 | DB/PK | 0.5 |
| 11 | RD/BK | 0.5 |
| 23 | DB/WH | 0.5 |
| 24 | DB/GY | 0.5 |
| 28 | RD | 0.5 |
| 29 | YE/OG | 0.5 |
| 31 | WH/GY | 0.5 |
| 33 | LG | 0.5 |
| 34 | LG/OG | 0.5 |
| 35 | LG/VT | 0.5 |
| 36 | RD/YE | 0.5 |
| 37 | RD/DB | 0.5 |
| 38 | LG/RD | 0.5 |
| 39 | RD/WH | 1 |
| 40 | BK | 1 |
| 42 | DG/VT | 0.35 |
