X901M - s-rhd-sop1

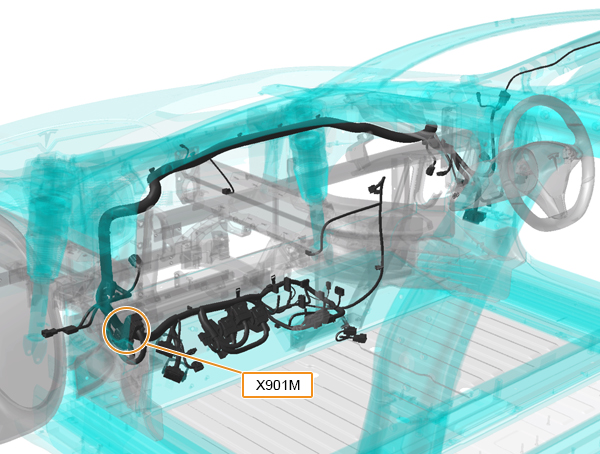

Location:

Connector Detail: yazaki_7282-4192-40

Gender:

Color: LightGray

Cav	Col	Gauge
1	RD/WH	1
2	BK/WH	1
3	YE/RD	2
4	BK	2
6	RD/GY	1
7	BK/GY	1
8	OG/BK	0.5
10	WH/DG	0.35
11	RD/OG	0.5
12	VT/GY	0.5
13	VT	0.5
14	WH/BN	0.35
15	WH/RD	0.35
16	WH/DB	0.35
17	WH/VT	0.35
19	BN/DB	0.5
20	BN/RD	0.5
21	BN/YE	0.5
22	DB/YE	0.5
23	DG/RD	0.5
24	DG/YE	0.5
25	GY/YE	0.5
26	LG/RD	0.5
31	VT/BN	0.35
32	BK	1
33	PK	0.5
36	BN	0.5
37	BN/WH	0.5
38	DB	0.5
39	RD	0.5
40	LG/WH	0.35
41	GY/WH	0.5
43	BK	1
