X936M - s-rhd-sop1

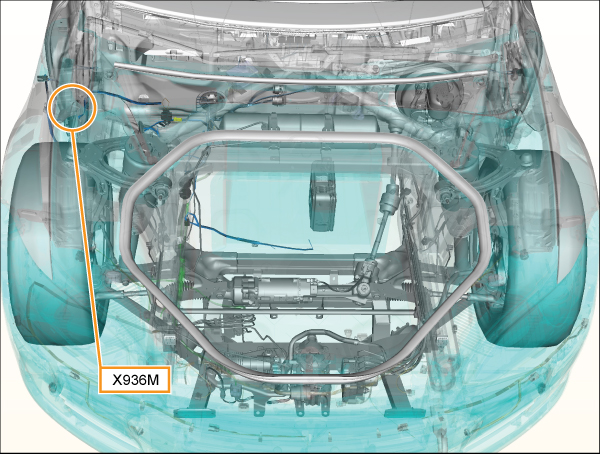

Location:
Connector Detail: amp_174930-1
Gender:
Color: WH
| Cav | Col | Gauge |
|---|---|---|
| 1 | GY | 2 |
| 2 | GY/BK | 2 |
| 3 | WH | 2 |
| 4 | BK | 2 |
| 5 | LB/BK | 0.75 |
| 6 | BK | 0.75 |
2012-2020 Model S Connector Reference
