X940F - s-rhd-sop1

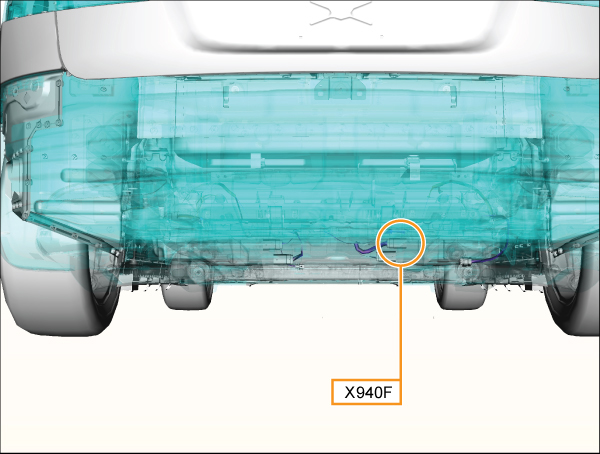

Location:
Connector Detail: molex_33472-1202
Gender:
Color: Gray
| Cav | Col | Gauge |
|---|---|---|
| 1 | VT/OG | 0.5 |
| 2 | WH/LB | 0.5 |
| 3 | LB/WH | 0.5 |
| 4 | BN/GY | 0.5 |
| 5 | BN/LG | 0.5 |
| 6 | LB/VT | 0.5 |
| 7 | PK/YE | 0.5 |
| 8 | LB/DG | 0.5 |
| 9 | WH/RD | 0.5 |
| 10 | WH/DG | 0.5 |
| 11 | VT | 0.5 |
| 12 | VT/LB | 0.5 |
