X951F - s-rhd-sop1

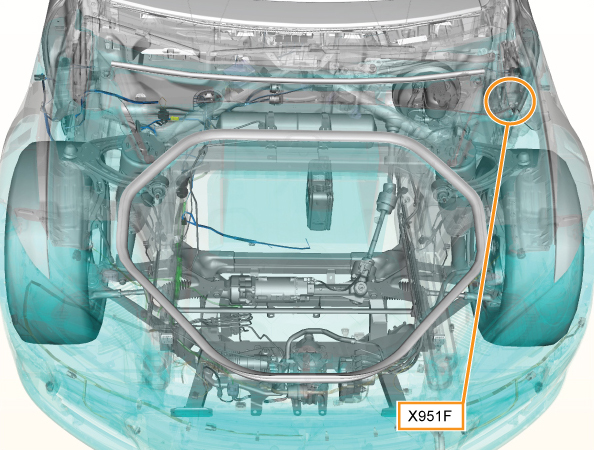

Location:

Connector Detail: yazaki_7283-4192-40

Gender:

Color: LightGray

Cav	Col	Gauge
1	YE/VT	0.75
3	BN/LB	2
4	YE	0.5
6	RD/BN	0.75
7	VT/GY	0.5
8	LG/RD	0.5
9	LG/BK	0.5
10	BN/YE	0.5
11	DG	0.5
12	DB/OG	0.5
13	DB/BK	0.5
14	OG	0.5
15	DG/BK	0.5
16	DG/YE	0.5
17	DG/OG	0.5
18	OG/DB	0.5
19	GY	0.5
20	LG/WH	0.5
21	BN	0.5
22	RD/YE	0.5
23	DB/YE	0.5
24	YE	0.5
25	DB/LB	0.35
26	RD	0.5
27	BN/BK	0.5
28	BN/WH	0.5
29	BN	0.5
30	LG/BN	0.5
31	VT/GY	0.5
32	WH/VT	0.5
33	WH/RD	0.5
34	PK/BK	0.5
35	DG/DB	0.5
36	LG/DB	0.5
37	RD/DB	0.5
38	LB	0.5
39	YE	0.5
40	DG/RD	0.5
41	GY/BK	0.5
