X965F - s-rhd-sop1

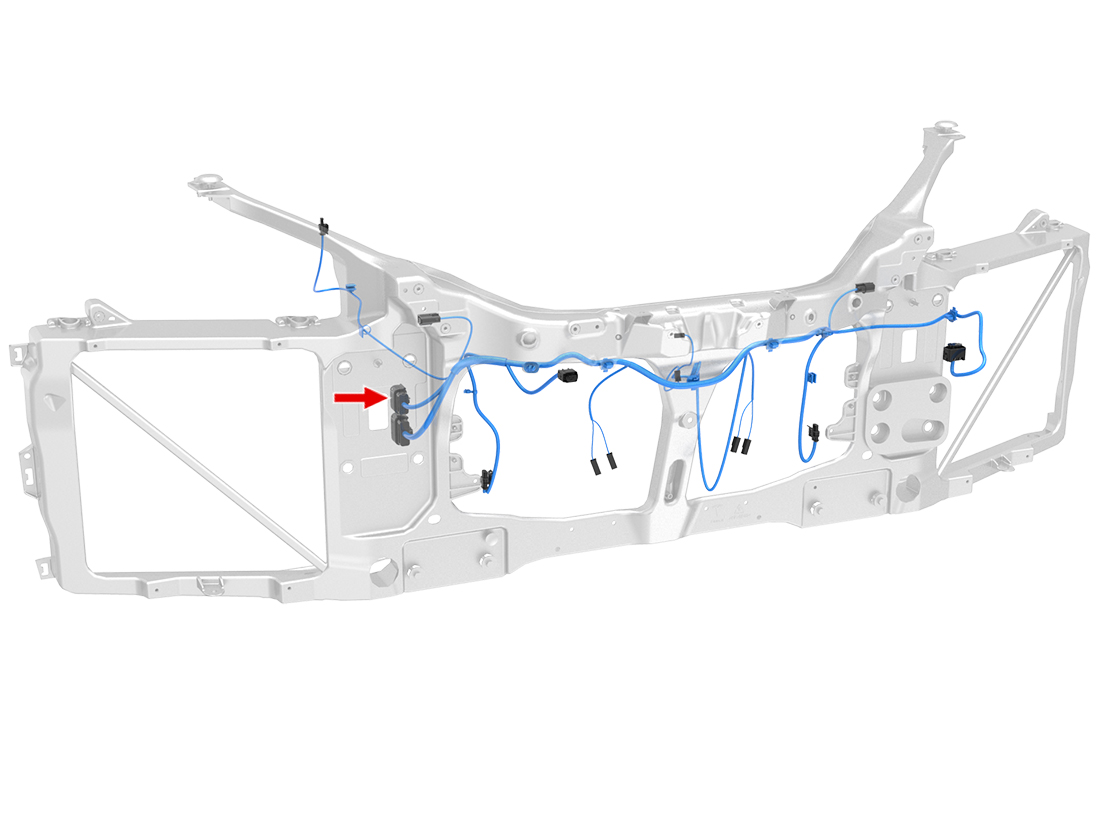

Location:

Connector Detail: molex_33472-1601

Gender:

Color: BK

Cav	Col	Gauge
1	WH/GY	0.5
2	DG/WH	0.5
3	DG	0.5
4	BK	0.5
5	PK/BN	0.5
6	DG/BN	0.5
7	PK/DB	0.5
8	DG/DB	0.5
12	OG/BN	0.35
13	PK/BK	0.5
14	DG/BK	0.5
15	PK	0.5
16	LG/WH	0.5
