X968M - s-rhd-sop1

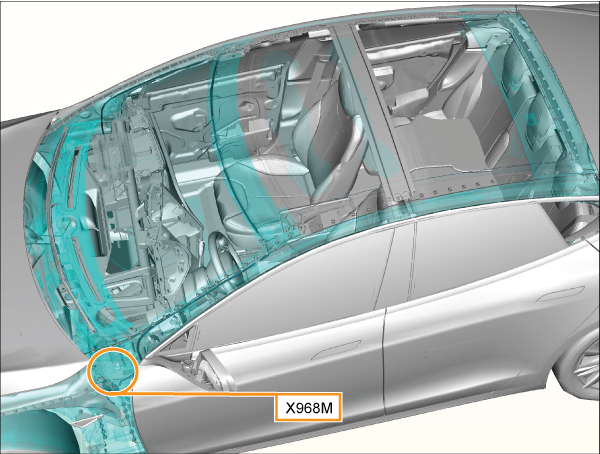

Location:
Connector Detail: yazaki_7282-6568-40
Gender:
Color: LightGray
| Cav | Col | Gauge |
|---|---|---|
| 2 | WH | 0.35 |
| 3 | YE | 0.35 |
| 4 | SH | 5.01 |
| 5 | DG/WH | 0.5 |
| 6 | DG | 0.5 |
| 7 | YE/DG | 0.5 |
| 8 | LG/VT | 0.35 |
| 12 | PK | 0.35 |
| 13 | PK/BK | 0.35 |
| 14 | SH | 5.01 |
| 15 | WH/GY | 0.5 |
| 16 | RD/DB | 0.5 |
| 17 | LG/RD | 0.5 |
