X971F - s-rhd-sop1

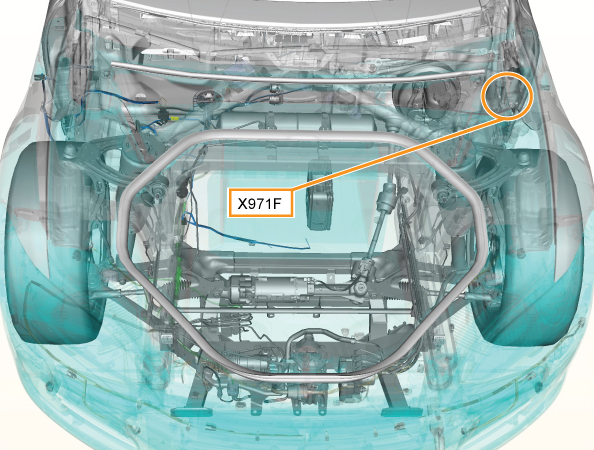

Location:
Connector Detail: yazaki_7283-6446-40
Gender:
Color: LightGray
| Cav | Col | Gauge |
|---|---|---|
| 1 | VT | 2 |
| 2 | VT/BK | 2 |
| 3 | TN | 2 |
| 3 | WH | 2 |
| 4 | WH/BK | 2 |
| 4 | TN/BK | 2 |
2012-2020 Model S Connector Reference
