X976M - s-rhd-sop1

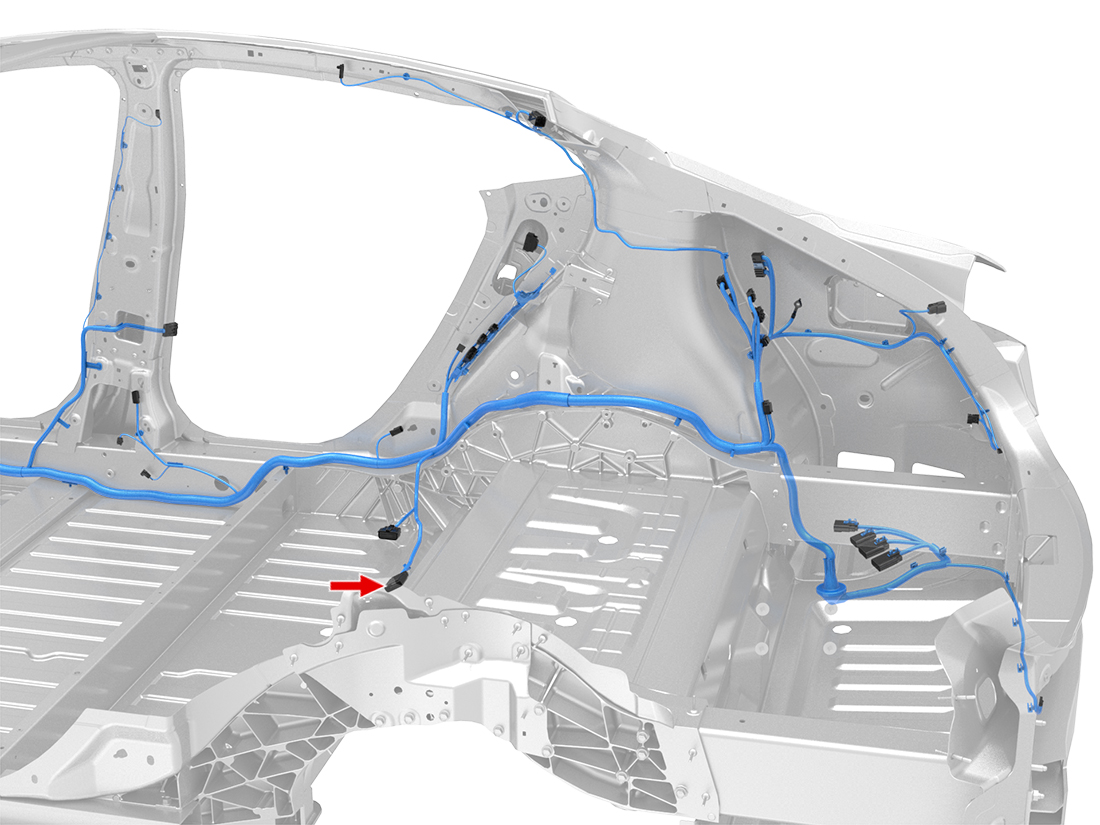

Location:
Connector Detail: molex_33482-2001
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 3 | RD/GY | 0.75 |
| 4 | DG/WH | 0.5 |
| 5 | DG | 0.5 |
| 6 | RD | 0.5 |
| 7 | DB | 0.5 |
| 8 | VT | 0.75 |
| 9 | YE | 0.75 |
| 13 | RD/GY | 0.75 |
| 14 | BN/WH | 0.5 |
| 14 | BN/WH | 0.5 |
| 15 | BN | 0.5 |
| 15 | BN | 0.5 |
| 16 | YE/BK | 0.5 |
| 17 | YE/GY | 0.75 |
| 18 | OG | 0.75 |
