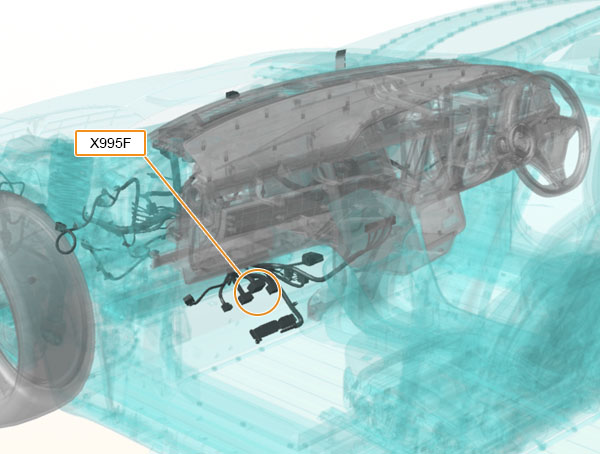

X995F - s-rhd-sop1

Location:

Connector Detail: delphi_13944943

Gender:

Color: BK

Cav	Col	Gauge
2	BN	0.5
3	RD/GY	0.75
4	VT	0.75
5	YE/VT	0.75
6	YE/DB	0.75
7	DG	2
10	RD/BK	0.5
11	LG/OG	0.5
12	YE/RD	0.5
13	YE/DG	0.5
14	LG	0.5
15	DG/WH	0.5
16	DG	0.5
17	RD	0.5
18	DB	0.5
19	YE/BK	0.35
20	BK/TN	0.35
21	YE/BK	0.5
22	YE/GY	0.5
23	RD/YE	0.5
24	WH/DG	0.5
25	WH/VT	0.5
26	WH/GY	0.5
27	RD/TN	0.5
28	RD	0.5
29	RD/OG	0.5
30	LG/BN	0.5
31	RD/GY	0.5
34	RD/WH	2
35	RD/YE	2
36	LB	0.75
37	BN/LB	2
