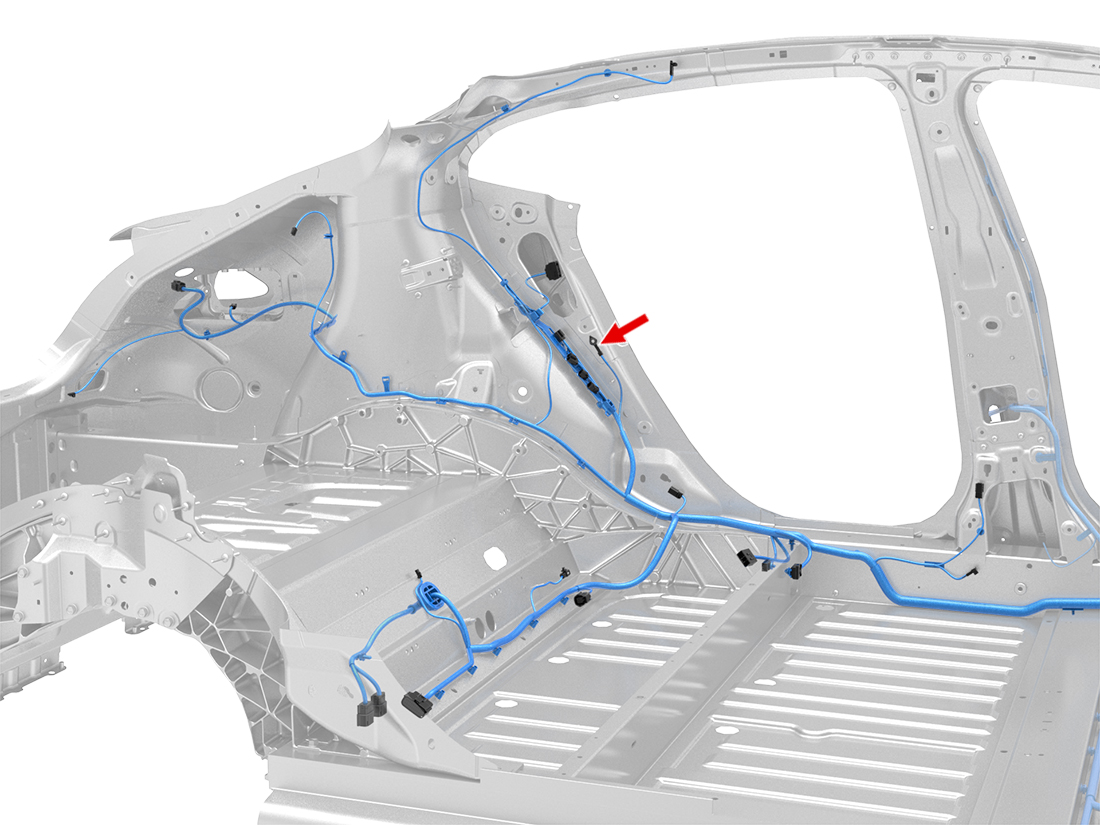

Location:
Connector Detail: Yazaki 7009-2154
Color: SN
Serviceability: Not Serviceable
| Cavity | Color | Size | Plate | Destination | Terminal |
|---|
| 1 | BK | 0.5 | SN | X035-12 | - |
| 1 | BK | 0.5 | SN | X036-12 | - |
| 1 | BK | 0.5 | SN | X044-4 | - |
| 1 | BK | 0.5 | SN | X049-9 | - |
| 1 | BK | 1 | SN | X214M-12 | - |
| 1 | BK | 1 | SN | X214M-7 | - |
| 1 | BK | 1 | SN | X214M-9 | - |
| 1 | BK | 1 | SN | X259-2 | - |
| 1 | BK | 0.75 | SN | X270-5 | - |
| 1 | BK | 0.5 | SN | X290-2 | - |
| 1 | BK | 0.5 | SN | X388-2 | - |
| 1 | BK | 0.75 | SN | X910M-16 | - |
| 1 | BK | 2 | SN | X910M-8 | - |
| 1 | BK | 0.75 | SN | X915M-16 | - |
| 1 | BK | 2 | SN | X915M-8 | - |
| 1 | BK | 2 | SN | X945M-11 | - |
| Cavity | Color | Size | Plate | Destination | Terminal |
|---|
| 1 | BK | 0.5 | SN | X035-12 | - |
| 1 | BK | 0.5 | SN | X036-12 | - |
| 1 | BK | 0.5 | SN | X044-4 | - |
| 1 | BK | 1 | SN | X214M-12 | - |
| 1 | BK | 1 | SN | X214M-7 | - |
| 1 | BK | 1 | SN | X214M-9 | - |
| 1 | BK | 1 | SN | X259-2 | - |
| 1 | BK | 0.75 | SN | X270-5 | - |
| 1 | BK | 0.5 | SN | X290-2 | - |
| 1 | BK | 0.5 | SN | X388-2 | - |
| 1 | BK | 0.75 | SN | X910M-16 | - |
| 1 | BK | 2 | SN | X910M-8 | - |
| 1 | BK | 0.75 | SN | X915M-16 | - |
| 1 | BK | 2 | SN | X915M-8 | - |
| 1 | BK | 2 | SN | X945M-11 | - |
