GND_FC2 - s-rhd-sop10

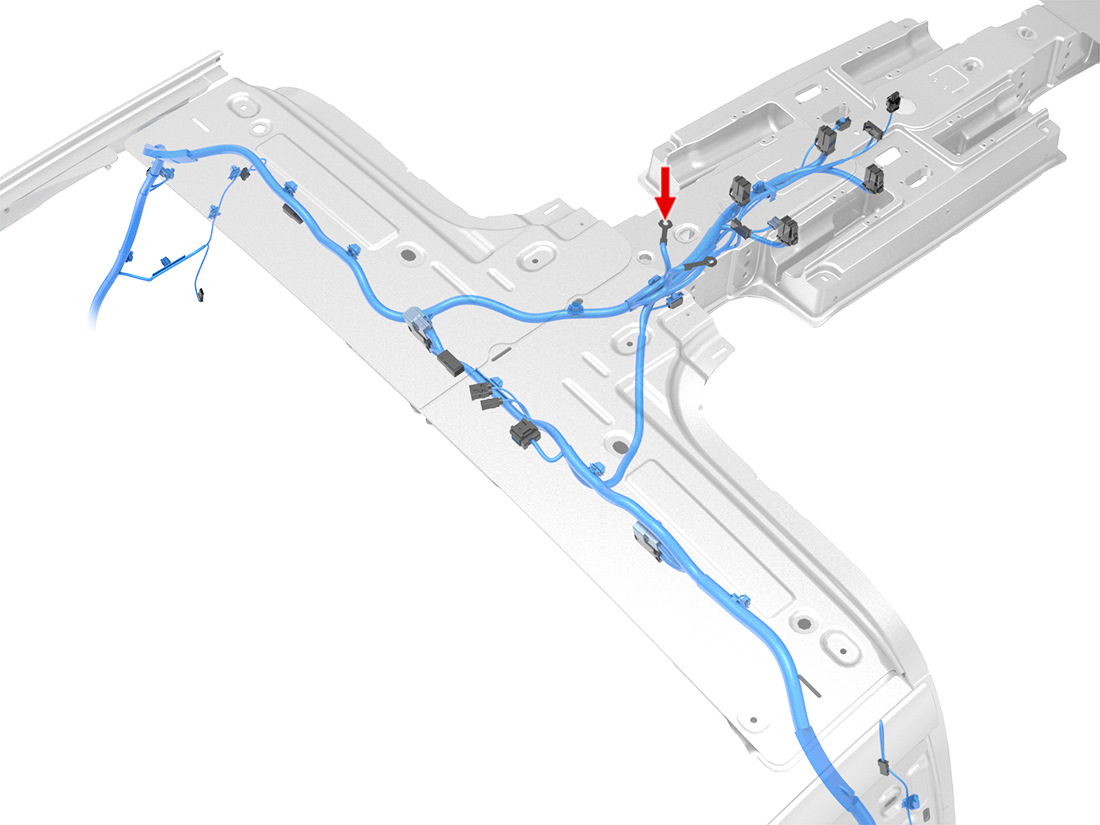

Location:
Connector Detail: YAZAKI 7009-1835
Color: SN
Serviceability: Not Serviceable
| Cavity | Color | Size | Plate | Destination | Terminal |
|---|---|---|---|---|---|
| 1 | BK | 6 | SN | X682-MINUS | - |
| 1 | BK | 6 | SN | X683-MINUS | - |
| Cavity | Color | Size | Plate | Destination | Terminal |
|---|---|---|---|---|---|
| 1 | BK | 6 | SN | X682-MINUS | - |
| 1 | BK | 6 | SN | X683-MINUS | - |
