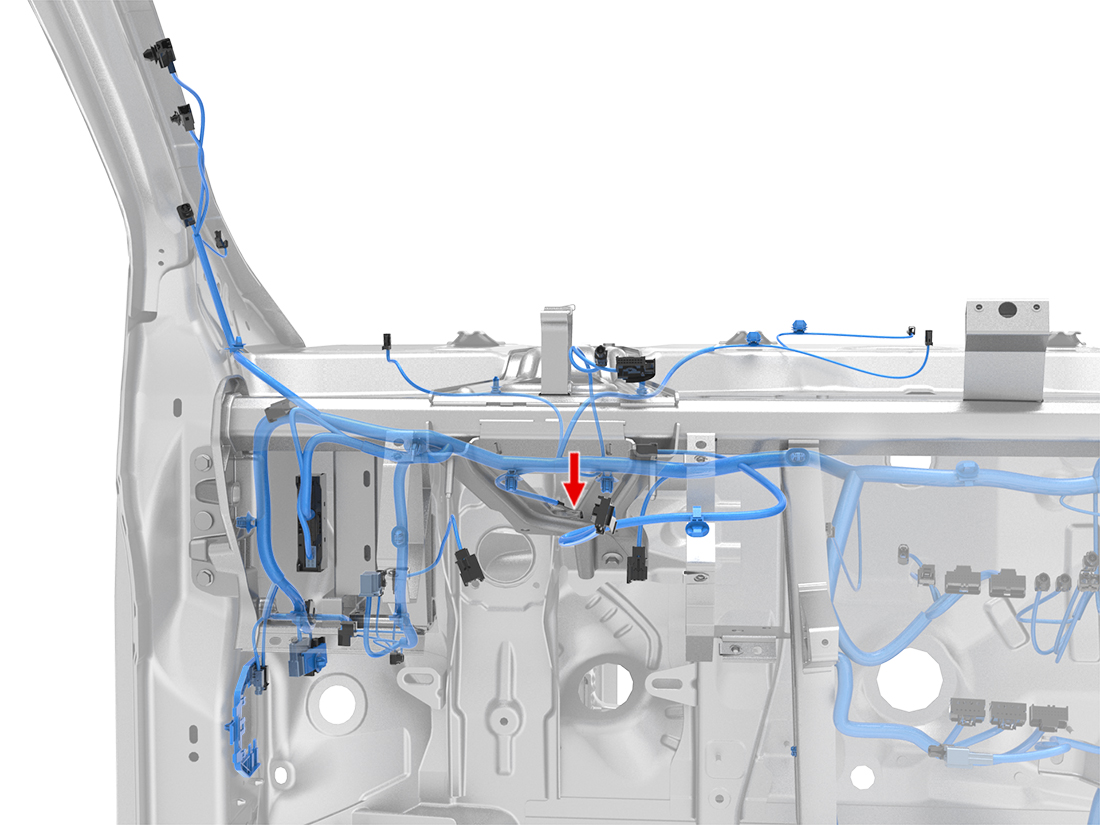

Location:
Connector Detail: Yazaki 7009-2154
Color: SN
Serviceability: Not Serviceable
| Cavity | Color | Size | Plate | Destination | Terminal |
|---|
| 1 | BK | 2 | SN | GND_IP_R-1 | - |
| 1 | BK | 2 | SN | X120A-18 | - |
| 1 | BK | 1.5 | SN | X164-2 | - |
| 1 | BK | 1.5 | SN | X175-10 | - |
| 1 | BK | 0.35 | SN | X177-8 | - |
| 1 | BK/BU | 0.5 | SN | X178-4 | - |
| 1 | BK/BN | 0.5 | SN | X178-5 | - |
| 1 | BK | 0.35 | SN | X180-3 | - |
| 1 | BK | 0.5 | SN | X180-7 | - |
| 1 | BK | 0.35 | SN | X189-3 | - |
| 1 | BK | 0.35 | SN | X280-2 | - |
| 1 | BK | 0.35 | SN | X289-2 | - |
| 1 | BK/WH | 1.5 | SN | X560-2 | - |
| 1 | BK | 0.5 | SN | X562-16 | - |
| 1 | BK | 0.5 | SN | X562-8 | - |
| 1 | BK | 1.5 | SN | X920M-11 | - |
| 1 | BK | 0.35 | SN | X920M-13 | - |
| 1 | BK | 1.5 | SN | X920M-17 | - |
| 1 | BK | 2 | SN | X921M-2 | - |
| 1 | BK | 0.35 | SN | X926F-7 | - |
| Cavity | Color | Size | Plate | Destination | Terminal |
|---|
| 1 | BK | 2 | SN | GND_IP_R-1 | - |
| 1 | BK | 1.5 | SN | X063-7 | - |
| 1 | BK | 2 | SN | X120A-18 | - |
| 1 | BK | 1.5 | SN | X175-10 | - |
| 1 | BK | 0.35 | SN | X185-3 | - |
| 1 | BK | 0.5 | SN | X186-1 | - |
| 1 | BK | 0.35 | SN | X187-1 | - |
| 1 | BK | 0.35 | SN | X188-2 | - |
| 1 | BK | 0.35 | SN | X189-3 | - |
| 1 | BK | 0.35 | SN | X280-2 | - |
| 1 | BK | 0.35 | SN | X289-2 | - |
| 1 | BK | 1.5 | SN | X920M-11 | - |
| 1 | BK | 1.5 | SN | X920M-17 | - |
| 1 | BK | 0.35 | SN | X920M-9 | - |
| 1 | BK | 2 | SN | X921M-2 | - |
| 1 | BK | 0.35 | SN | X925F-17 | - |
