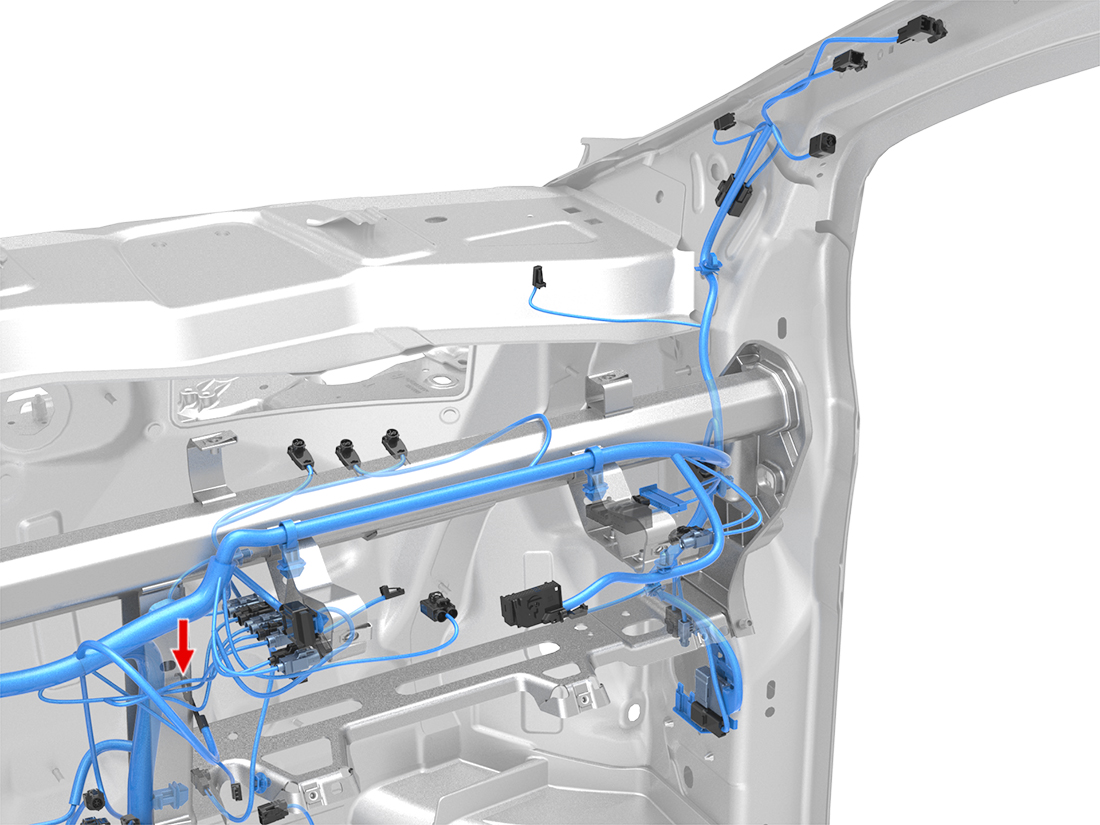

Location:
Connector Detail: Yazaki 7009-2154
Color: SN
Serviceability: Not Serviceable
| Cavity | Color | Size | Plate | Destination | Terminal |
|---|
| 1 | BK | 2 | SN | GND_IP_L-1 | - |
| 1 | BK | 1.5 | SN | X063-7 | - |
| 1 | BK | 2 | SN | X120A-17 | - |
| 1 | BK | 0.5 | SN | X126-15 | - |
| 1 | BK/BU | 0.5 | SN | X179-20 | - |
| 1 | BK | 0.35 | SN | X185-3 | - |
| 1 | BK | 0.5 | SN | X186-1 | - |
| 1 | BK | 0.35 | SN | X187-1 | - |
| 1 | BK | 0.35 | SN | X188-2 | - |
| 1 | BK | 0.35 | SN | X281-2 | - |
| 1 | BK | 0.35 | SN | X290-2 | - |
| 1 | BK | 1 | SN | X903M-2 | - |
| 1 | BK | 1 | SN | X904M-2 | - |
| 1 | BK | 1.5 | SN | X922M-11 | - |
| 1 | BK | 0.35 | SN | X922M-13 | - |
| 1 | BK | 1.5 | SN | X922M-17 | - |
| 1 | BK | 2 | SN | X923M-2 | - |
| 1 | BK | 0.13 | SN | X924F-16 | - |
| 1 | BK | 0.35 | SN | X927F-3 | - |
| Cavity | Color | Size | Plate | Destination | Terminal |
|---|
| 1 | BK | 2 | SN | GND_IP_L-1 | - |
| 1 | BK | 2 | SN | X120A-17 | - |
| 1 | BK | 0.5 | SN | X126-15 | - |
| 1 | BK | 1.5 | SN | X164-2 | - |
| 1 | BK | 0.35 | SN | X177-8 | - |
| 1 | BK/BU | 0.5 | SN | X178-4 | - |
| 1 | BK/BN | 0.5 | SN | X178-5 | - |
| 1 | BK/BU | 0.5 | SN | X179-20 | - |
| 1 | BK | 0.35 | SN | X180-3 | - |
| 1 | BK | 0.5 | SN | X180-7 | - |
| 1 | BK | 0.35 | SN | X281-2 | - |
| 1 | BK | 0.35 | SN | X290-2 | - |
| 1 | BK/WH | 1.5 | SN | X560-2 | - |
| 1 | BK | 0.5 | SN | X562-16 | - |
| 1 | BK | 0.5 | SN | X562-8 | - |
| 1 | BK | 1 | SN | X903M-2 | - |
| 1 | BK | 1 | SN | X904M-2 | - |
| 1 | BK | 1.5 | SN | X922M-11 | - |
| 1 | BK | 1.5 | SN | X922M-17 | - |
| 1 | BK | 0.35 | SN | X922M-9 | - |
| 1 | BK | 2 | SN | X923M-2 | - |
| 1 | BK | 0.13 | SN | X924F-2 | - |
| 1 | BK | 0.35 | SN | X927F-5 | - |
