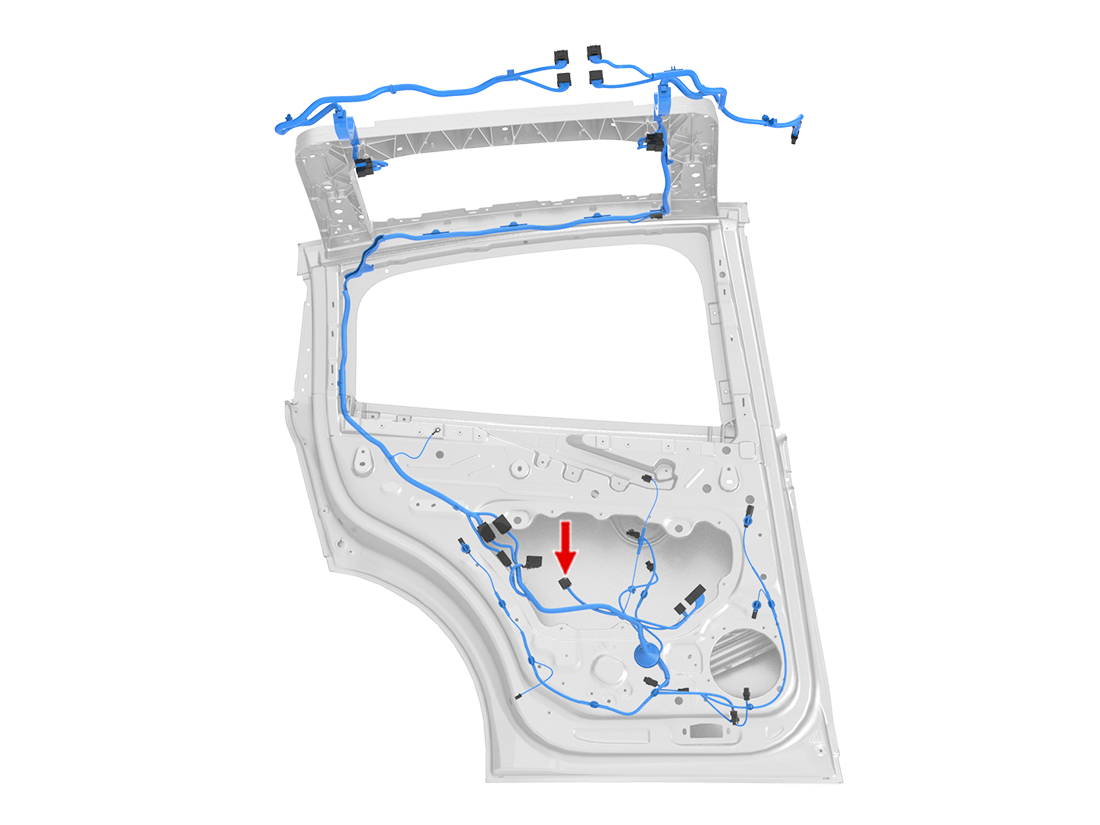

Location:
Connector Detail: Sumitomo 6098-5716
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | RD | 1 | SN | X586-1 | Sumitomo 8240-0213 | | 1099539-00-A | |
| 2 | RD | 1.5 | SN | X973F-10 | Sumitomo 8240-0214 | | 1099540-00-A | |
| 3 | RD | 0.35 | SN | X421-24 | Sumitomo 8240-0215 | | 1099541-00-A | |
| 4 | GY | 1 | SN | X586-2 | Sumitomo 8240-0213 | | 1099539-00-A | |
| 5 | GY | 1.5 | SN | X973F-18 | Sumitomo 8240-0214 | | 1099540-00-A | |
| 6 | GY | 0.35 | SN | X421-23 | Sumitomo 8240-0215 | | 1099541-00-A | |
| 7 | BK | 0.5 | SN | X447-13 | Sumitomo 8240-0215 | | 1099541-00-A | |
| 8 | BK | 0.35 | SN | X434-2 | Sumitomo 8240-0215 | | 1099541-00-A | |
| 9 | BK/WH | 0.75 | SN | X423-7 | Sumitomo 8240-0213 | | 1099539-00-A | |
| 10 | BK | 1 | SN | X973F-17 | Sumitomo 8240-0213 | | 1099539-00-A | |
| 11 | BK/BU | 0.5 | SN | X616-2 | Sumitomo 8240-0215 | | 1099541-00-A | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | RD | 1 | SN | X586-1 | Sumitomo 8240-0213 | | 1099539-00-A | |
| 2 | RD | 1.5 | SN | X973F-10 | Sumitomo 8240-0214 | | 1099540-00-A | |
| 3 | RD | 0.35 | SN | X421-24 | Sumitomo 8240-0215 | | 1099541-00-A | |
| 4 | GY | 1 | SN | X586-2 | Sumitomo 8240-0213 | | 1099539-00-A | |
| 5 | GY | 1.5 | SN | X973F-18 | Sumitomo 8240-0214 | | 1099540-00-A | |
| 6 | GY | 0.35 | SN | X421-23 | Sumitomo 8240-0215 | | 1099541-00-A | |
| 7 | BK | 0.5 | SN | X447-13 | Sumitomo 8240-0215 | | 1099541-00-A | |
| 8 | BK | 0.35 | SN | X434-2 | Sumitomo 8240-0215 | | 1099541-00-A | |
| 9 | BK/WH | 0.75 | SN | X423-7 | Sumitomo 8240-0213 | | 1099539-00-A | |
| 10 | BK | 1 | SN | X973F-17 | Sumitomo 8240-0213 | | 1099539-00-A | |
| 11 | BK/BU | 0.5 | SN | X616-2 | Sumitomo 8240-0215 | | 1099541-00-A | |
