GND_LB - s-rhd-sop10

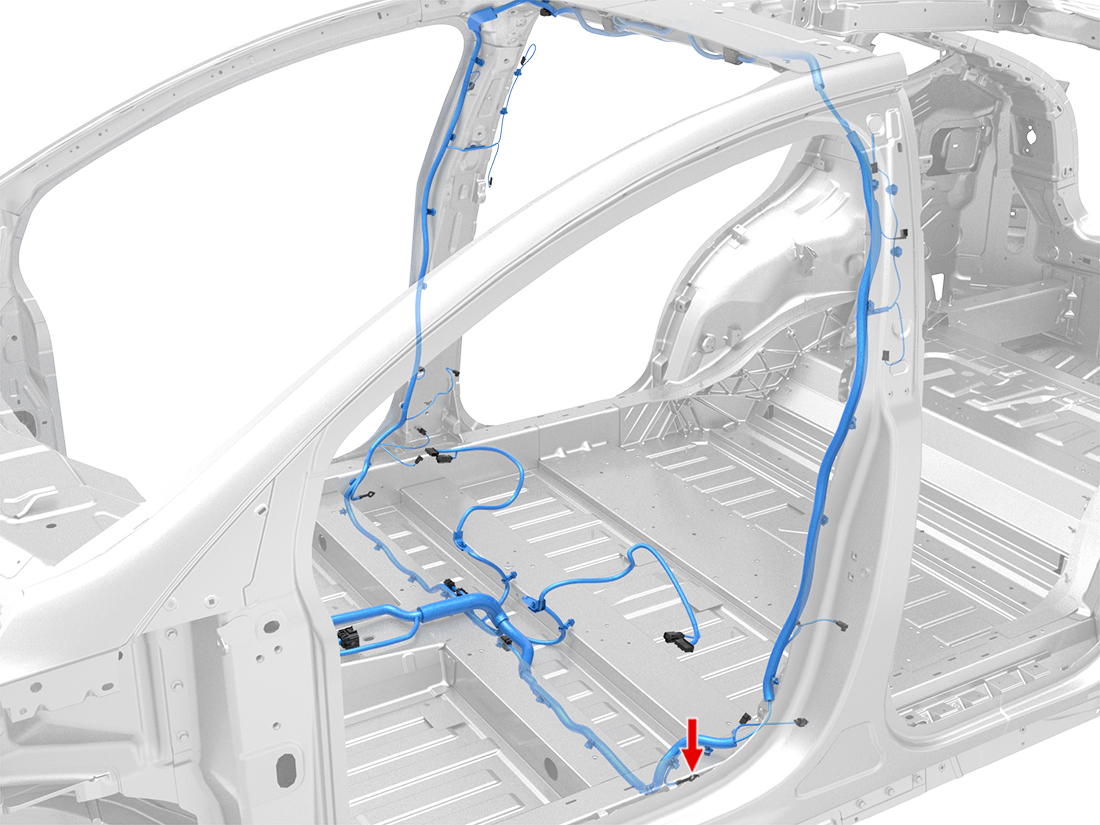

Location:
Connector Detail: YAZAKI 7009-2154
Color: SN
Serviceability: Not Serviceable
| Cavity | Color | Size | Plate | Destination | Terminal |
|---|---|---|---|---|---|
| 1 | BK | 0.35 | SN | X148-5 | - |
| 1 | BK | 0.35 | SN | X550-4 | - |
| 1 | BK | 1 | SN | X970M-12 | - |
| 1 | BK/WH | 2 | SN | X970M-6 | - |
| 1 | BK | 1 | SN | X971M-12 | - |
| 1 | BK/WH | 2 | SN | X971M-6 | - |
| 1 | BK | 0.35 | SN | X980M-10 | - |
| 1 | BK | 0.5 | SN | X980M-5 | - |
| Cavity | Color | Size | Plate | Destination | Terminal |
|---|---|---|---|---|---|
| 1 | BK | 0.35 | SN | X148-5 | - |
| 1 | BK | 0.35 | SN | X550-4 | - |
| 1 | BK | 1 | SN | X970M-12 | - |
| 1 | BK/WH | 2 | SN | X970M-6 | - |
| 1 | BK | 1 | SN | X971M-12 | - |
| 1 | BK/WH | 2 | SN | X971M-6 | - |
| 1 | BK | 0.35 | SN | X980M-10 | - |
| 1 | BK | 0.5 | SN | X980M-5 | - |
