GND_LG - s-rhd-sop10

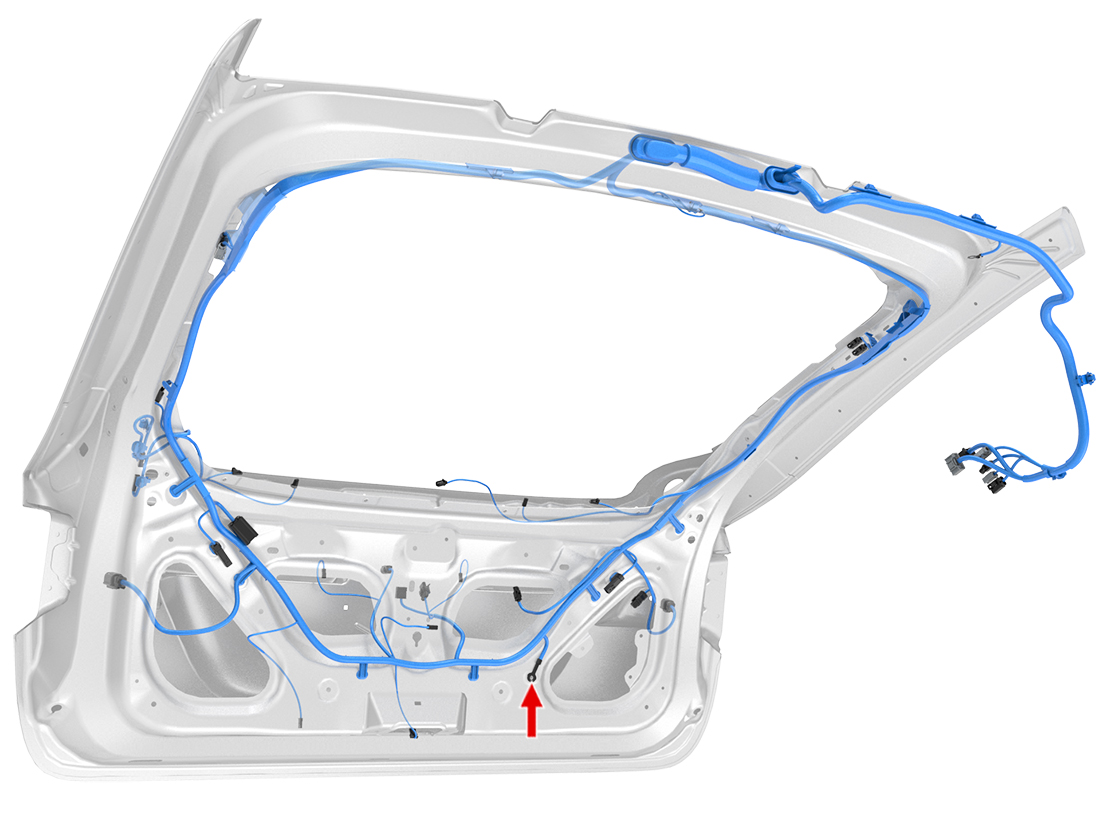

Location:
Connector Detail: Yazaki 7009-1835
Color: SN
Serviceability: Not Serviceable
| Cavity | Color | Size | Plate | Destination | Terminal |
|---|---|---|---|---|---|
| 1 | BK | 0.5 | SN | X271-6 | - |
| 1 | BK | 0.5 | SN | X273-6 | - |
| 1 | BK | 0.35 | SN | X274-2 | - |
| 1 | BK | 0.35 | SN | X278-2 | - |
| 1 | BK | 0.35 | SN | X279-2 | - |
| 1 | BK | 0.35 | SN | X296-2 | - |
| 1 | BK | 0.5 | SN | X340-2 | - |
| 1 | BK | 0.35 | SN | X342-2 | - |
| 1 | BK | 0.35 | SN | X347-2 | - |
| Cavity | Color | Size | Plate | Destination | Terminal |
|---|---|---|---|---|---|
| 1 | BK | 0.5 | SN | X271-6 | - |
| 1 | BK | 0.5 | SN | X273-6 | - |
| 1 | BK | 0.35 | SN | X274-2 | - |
| 1 | BK | 0.35 | SN | X278-2 | - |
| 1 | BK | 0.35 | SN | X279-2 | - |
| 1 | BK | 0.35 | SN | X296-2 | - |
| 1 | BK | 0.5 | SN | X340-2 | - |
| 1 | BK | 0.35 | SN | X342-2 | - |
| 1 | BK | 0.35 | SN | X347-2 | - |
