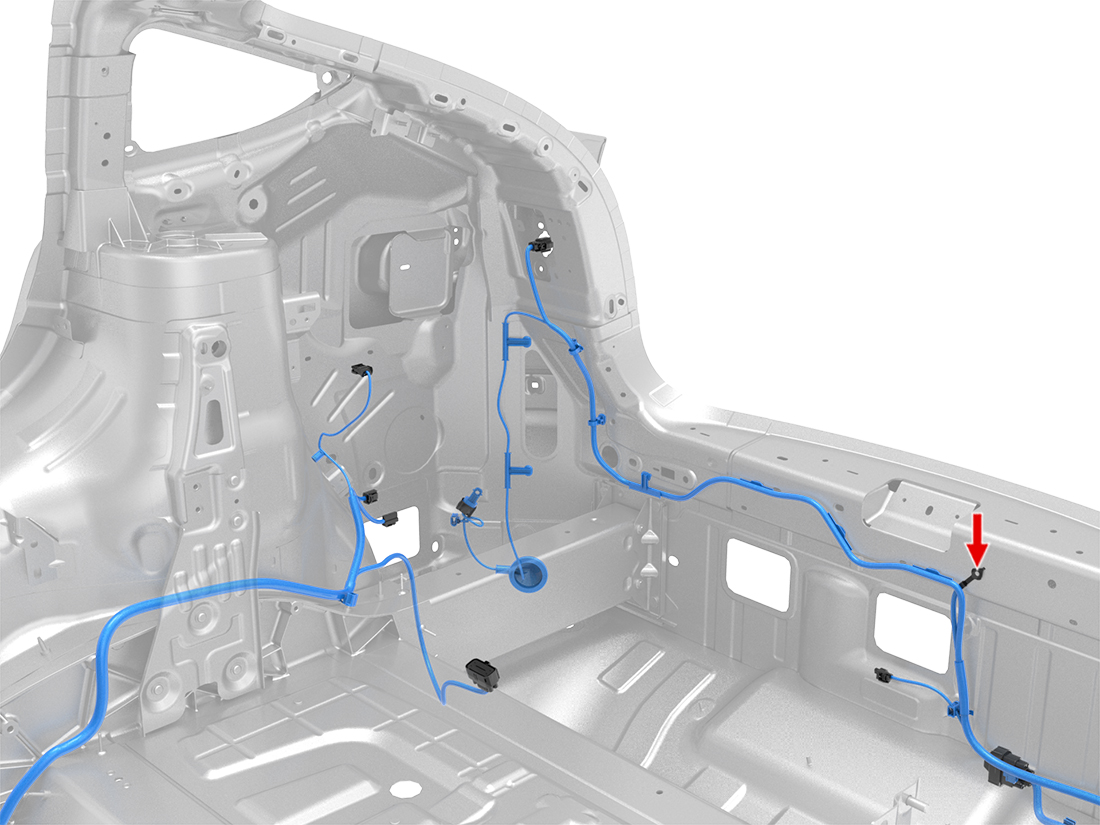

Location:
Connector Detail: YAZAKI 7009-2154
Color: SN
Serviceability: Not Serviceable
| Cavity | Color | Size | Plate | Destination | Terminal |
|---|
| 1 | BK | 1 | SN | X073-11 | - |
| 1 | BK | 2 | SN | X073-15 | - |
| 1 | BK | 0.5 | SN | X090-11 | - |
| 1 | BK | 0.5 | SN | X104-9 | - |
| 1 | BK | 0.5 | SN | X105-4 | - |
| 1 | BK | 0.5 | SN | X131-13 | - |
| 1 | BK | 0.5 | SN | X131A-13 | - |
| 1 | BK | 2 | SN | X160-1 | - |
| 1 | BK | 2 | SN | X160-7 | - |
| 1 | BK | 1 | SN | X194A-C | - |
| 1 | BK | 0.5 | SN | X270-6 | - |
| 1 | BK | 0.5 | SN | X272-6 | - |
| 1 | BK | 2 | SN | X275-16 | - |
| 1 | BK | 0.5 | SN | X293A-2 | - |
| 1 | BK | 0.5 | SN | X951M-16 | - |
| 1 | BK | 0.75 | SN | X959-16 | - |
| 1 | BK | 0.75 | SN | X959-8 | - |
| Cavity | Color | Size | Plate | Destination | Terminal |
|---|
| 1 | BK | 1 | SN | X073-11 | - |
| 1 | BK | 2 | SN | X073-15 | - |
| 1 | BK | 0.5 | SN | X090-11 | - |
| 1 | BK | 0.5 | SN | X104-9 | - |
| 1 | BK | 0.5 | SN | X105-4 | - |
| 1 | BK | 0.5 | SN | X131-13 | - |
| 1 | BK | 0.5 | SN | X131A-13 | - |
| 1 | BK | 2 | SN | X160-1 | - |
| 1 | BK | 2 | SN | X160-7 | - |
| 1 | BK | 1 | SN | X194A-C | - |
| 1 | BK | 0.5 | SN | X270-6 | - |
| 1 | BK | 0.5 | SN | X272-6 | - |
| 1 | BK | 2 | SN | X275-16 | - |
| 1 | BK | 0.5 | SN | X293A-2 | - |
| 1 | BK | 0.5 | SN | X951M-16 | - |
| 1 | BK | 0.75 | SN | X959-16 | - |
| 1 | BK | 0.75 | SN | X959-8 | - |
