X011 - s-rhd-sop10

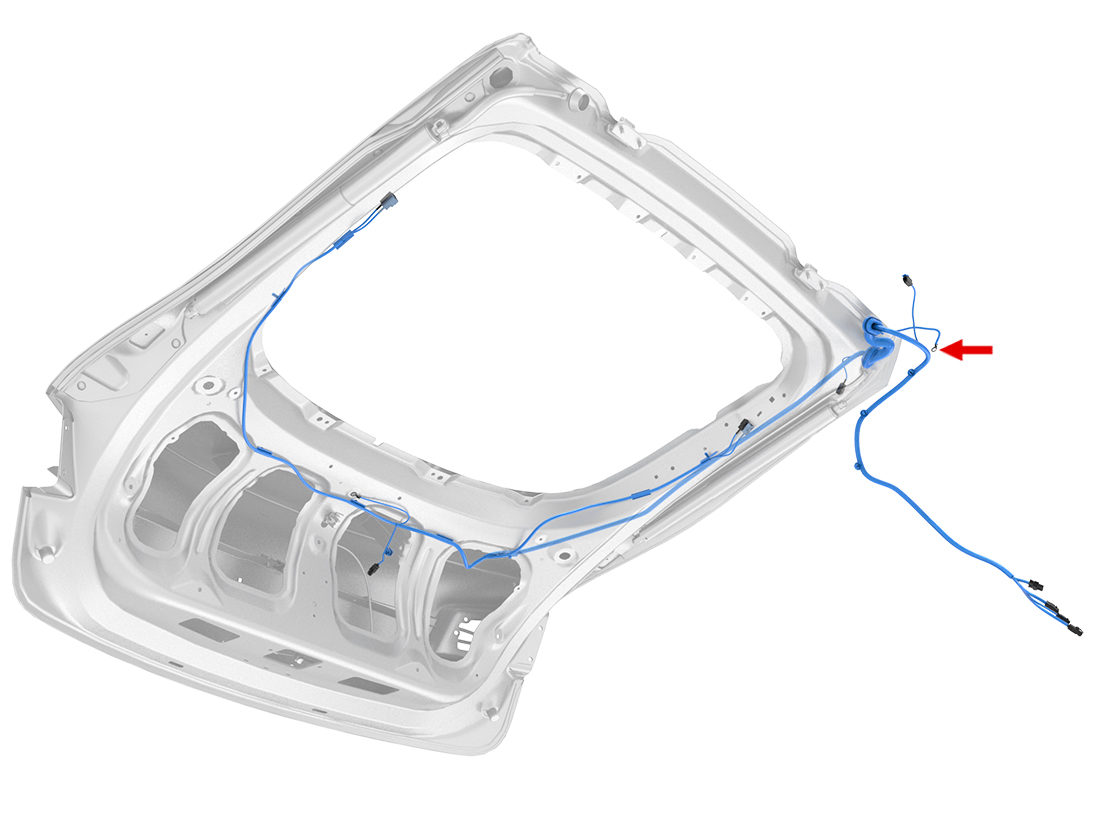

Location:
Location:
Connector Detail: Yazaki 7009-1333-02
Color: SN
Serviceability: Not Serviceable
Connector Detail: Vishay NTCALUGE3C91080
Color: SN
Serviceability: Connector Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal |
|---|---|---|---|---|---|
| 1 | BK | 3 | SN | X012-1 | - |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BU | 0.35 | SN | X012-4 | - | - | not found | |
| 2 | BU | 0.35 | SN | X012-5 | - | - | not found |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BU | 0.35 | SN | X012-4 | - | - | not found | |
| 2 | BU | 0.35 | SN | X012-5 | - | - | not found |
| Cavity | Color | Size | Plate | Destination | Terminal |
|---|---|---|---|---|---|
| 1 | BK | 3 | SN | X012-1 | - |
