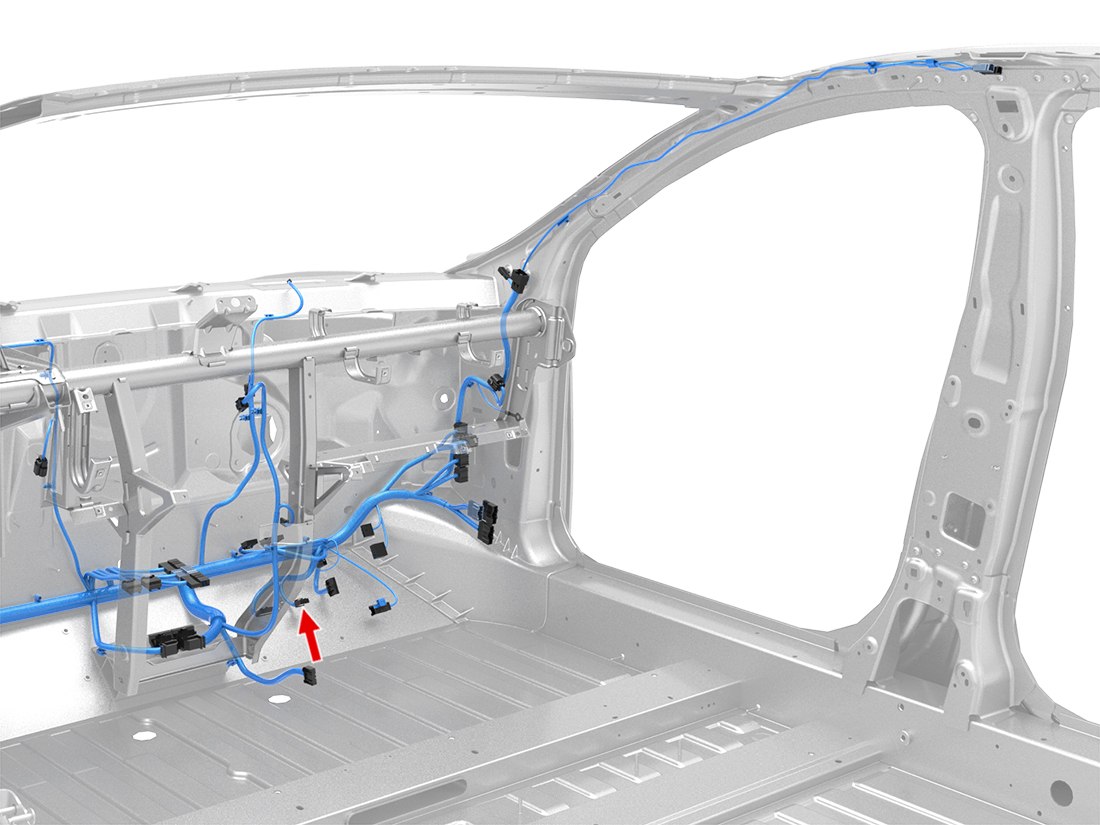

X024 - s-rhd-sop10
Location:
Location:
Location:
Connector Detail: DELPHI 13544532
Color: Green
Serviceability: Terminal Pigtail
Connector Detail: JAE MX34016SF1
Color: Gray
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 2 | RD/BK | 0.35 | SN | X953M-25 | JAE M34S75C4F1 | 1099499-00-B | ||
| 3 | WH/BU | 0.35 | SN | X948M-13 | JAE M34S75C4F1 | 1099499-00-B | ||
| 4 | YE | 0.35 | SN | X910M-10 | JAE M34S75C4F1 | 1099499-00-B | ||
| 5 | BN | 0.5 | SN | X953M-23 | JAE M34S75C4F2 | 1099500-00-A | ||
| 6 | OG | 0.35 | SN | X388-1 | JAE M34S75C4F1 | 1099499-00-B | ||
| 7 | RD/VT | 0.5 | SN | X954M-12 | JAE M34S75C4F2 | 1099500-00-A | ||
| 8 | WH/BK | 0.5 | SN | X954M-13 | JAE M34S75C4F2 | 1099500-00-A | ||
| 9 | RD/GY | 0.35 | SN | X953M-24 | JAE M34S75C4F1 | 1099499-00-B | ||
| 10 | RD/WH | 0.35 | SN | X579-8 | JAE M34S75C4F1 | 1099499-00-B | ||
| 11 | GY | 0.35 | SN | X944M-9 | JAE M34S75C4F1 | 1099499-00-B | ||
| 12 | WH | 0.35 | SN | X943M-9 | JAE M34S75C4F1 | 1099499-00-B | ||
| 13 | BU | 0.35 | SN | Z59-SEC10-R | JAE M34S75C4F1 | 1099499-00-B | ||
| 15 | RD/GN | 0.5 | SN | X954M-14 | JAE M34S75C4F2 | 1099500-00-A | ||
| 16 | GY/WH | 0.5 | SN | X954M-15 | JAE M34S75C4F2 | 1099500-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 3 | RD/BK | 2 | SN | X160-9 | DELPHI 13544537 | 1099486-00-A | ||
| 6 | BN | 1.5 | SN | X073-10 | DELPHI 13544537 | 1099486-00-A | ||
| 7 | RD/GN | 2 | SN | X971M-2 | DELPHI 13544537 | 1099486-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 3 | RD/BK | 2 | SN | X160-9 | DELPHI 13544537 | 1099486-00-A | ||
| 6 | BN | 1.5 | SN | X073-10 | DELPHI 13544537 | 1099486-00-A | ||
| 7 | RD/GN | 2 | SN | X971M-2 | DELPHI 13544537 | 1099486-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 2 | RD/BK | 0.35 | SN | X953M-25 | JAE M34S75C4F1 | 1099499-00-B | ||
| 3 | WH/BU | 0.35 | SN | X948M-13 | JAE M34S75C4F1 | 1099499-00-B | ||
| 4 | YE | 0.35 | SN | X915M-10 | JAE M34S75C4F1 | 1099499-00-B | ||
| 5 | BN | 0.5 | SN | X953M-23 | JAE M34S75C4F2 | 1099500-00-A | ||
| 6 | OG | 0.35 | SN | X388-1 | JAE M34S75C4F1 | 1099499-00-B | ||
| 7 | RD/VT | 0.5 | SN | X954M-12 | JAE M34S75C4F2 | 1099500-00-A | ||
| 8 | WH/BK | 0.5 | SN | X954M-13 | JAE M34S75C4F2 | 1099500-00-A | ||
| 9 | RD/GY | 0.35 | SN | X953M-24 | JAE M34S75C4F1 | 1099499-00-B | ||
| 10 | RD/WH | 0.35 | SN | X579-8 | JAE M34S75C4F1 | 1099499-00-B | ||
| 11 | GY | 0.35 | SN | X944M-9 | JAE M34S75C4F1 | 1099499-00-B | ||
| 12 | WH | 0.35 | SN | X943M-9 | JAE M34S75C4F1 | 1099499-00-B | ||
| 13 | BU | 0.35 | SN | Z59-SEC10-L | JAE M34S75C4F1 | 1099499-00-B | ||
| 15 | RD/GN | 0.5 | SN | X954M-14 | JAE M34S75C4F2 | 1099500-00-A | ||
| 16 | GY/WH | 0.5 | SN | X954M-15 | JAE M34S75C4F2 | 1099500-00-A |
