X025 - s-rhd-sop10

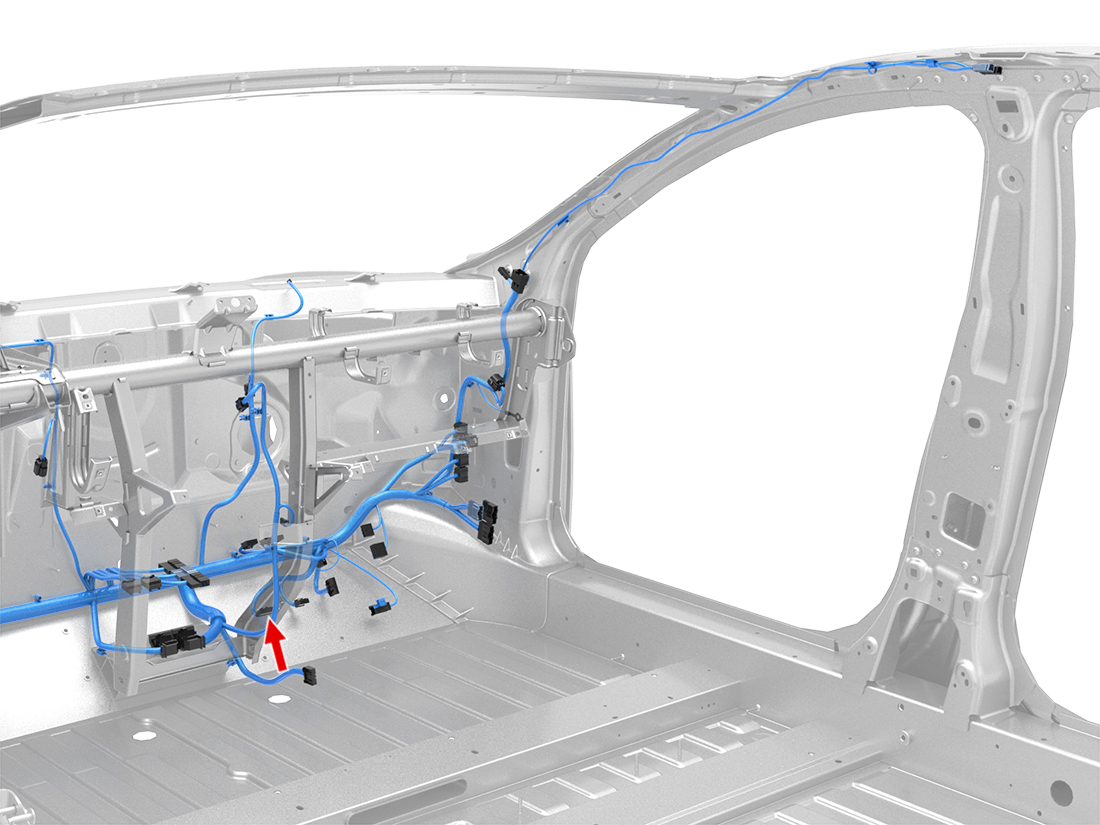

Location:

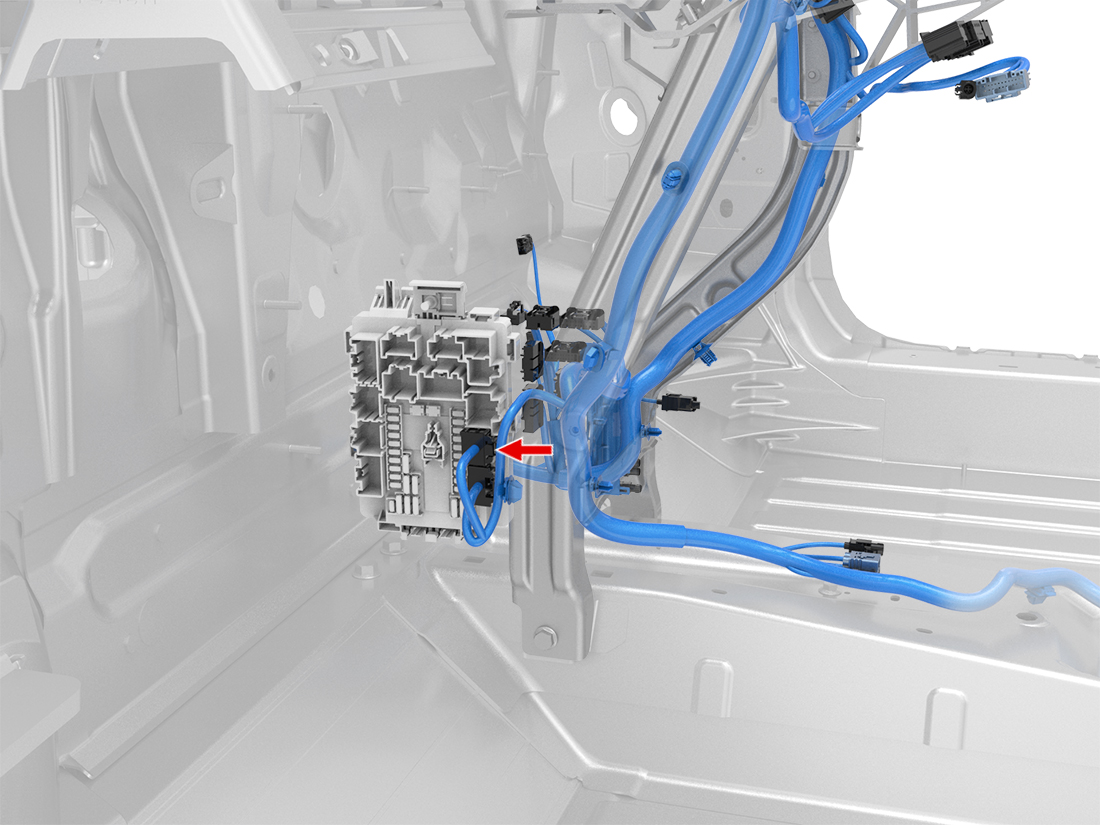

Location:
Location:
Connector Detail: Delphi 13799638
Color: BK
Serviceability: Terminal Pigtail
Connector Detail: JAE MX34032SF1
Color: Gray
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | GN | 0.35 | SN | X775-10 | JAE M34S75C4F1 | 1099499-00-B | ||
| 2 | YE/WH | 0.35 | SN | Z25-BMS04-R | JAE M34S75C4F1 | 1099499-00-B | ||
| 3 | WH/BK | 0.35 | SN | X948M-5 | JAE M34S75C4F1 | 1099499-00-B | ||
| 4 | BU/WH | 0.35 | SN | X944M-17 | JAE M34S75C4F1 | 1099499-00-B | ||
| 5 | OG | 0.35 | SN | X943M-17 | JAE M34S75C4F1 | 1099499-00-B | ||
| 6 | WH/BU | 0.35 | SN | X988M-22 | JAE M34S75C4F1 | 1099499-00-B | ||
| 8 | VT/WH | 0.35 | SN | Z88-SEC13-R | JAE M34S75C4F1 | 1099499-00-B | ||
| 12 | BN | 0.35 | SN | X988M-12 | JAE M34S75C4F1 | 1099499-00-B | ||
| 14 | GY | 0.35 | SN | X948M-6 | JAE M34S75C4F1 | 1099499-00-B | ||
| 16 | VT | 0.75 | SN | X955M-20 | JAE M34S75C4F2 | 1099500-00-A | ||
| 17 | GN/WH | 0.35 | SN | X775-21 | JAE M34S75C4F1 | 1099499-00-B | ||
| 19 | GY/WH | 0.35 | SN | X988M-13 | JAE M34S75C4F1 | 1099499-00-B | ||
| 20 | BK | 0.35 | SN | X954M-24 | JAE M34S75C4F1 | 1099499-00-B | ||
| 21 | BU | 0.35 | SN | X988M-23 | JAE M34S75C4F1 | 1099499-00-B | ||
| 22 | RD/YE | 0.5 | SN | X954M-2 | JAE M34S75C4F2 | 1099500-00-A | ||
| 24 | YE | 0.35 | SN | X988M-10 | JAE M34S75C4F1 | 1099499-00-B | ||
| 29 | GN | 0.35 | SN | X578-15 | JAE M34S75C4F1 | 1099499-00-B | ||
| 32 | RD/GY | 0.75 | SN | X955M-12 | JAE M34S75C4F2 | 1099500-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 3 | RD/BK | 0.5 | SN | X174-7 | Delphi 13544535 | 1099482-00-A | ||
| 5 | RD/GN | 2 | SN | X120A-9 | Delphi 13544537 | 1099486-00-A | ||
| 6 | RD/VT | 1.5 | SN | X175-7 | Delphi 13544537 | 1099486-00-A | ||
| 7 | RD | 0.5 | SN | X180-6 | Delphi 13544535 | 1099482-00-A | ||
| 8 | RD/WH | 1.5 | SN | X560-1 | Delphi 13544537 | 1099486-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 3 | RD/BK | 0.5 | SN | X174-7 | Delphi 13544535 | 1099482-00-A | ||
| 5 | RD/GN | 2 | SN | X120A-9 | Delphi 13544537 | 1099486-00-A | ||
| 6 | RD/VT | 1.5 | SN | X175-7 | Delphi 13544537 | 1099486-00-A | ||
| 7 | RD | 0.5 | SN | X180-6 | Delphi 13544535 | 1099482-00-A | ||
| 8 | RD/WH | 1.5 | SN | X560-1 | Delphi 13544537 | 1099486-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | GN | 0.35 | SN | X775-10 | JAE M34S75C4F1 | 1099499-00-B | ||
| 2 | YE/WH | 0.35 | SN | Z25-BMS04-L | JAE M34S75C4F1 | 1099499-00-B | ||
| 3 | WH/BK | 0.35 | SN | X948M-5 | JAE M34S75C4F1 | 1099499-00-B | ||
| 4 | BU/WH | 0.35 | SN | X944M-17 | JAE M34S75C4F1 | 1099499-00-B | ||
| 5 | OG | 0.35 | SN | X943M-17 | JAE M34S75C4F1 | 1099499-00-B | ||
| 6 | WH/BU | 0.35 | SN | X988M-22 | JAE M34S75C4F1 | 1099499-00-B | ||
| 8 | VT/WH | 0.35 | SN | Z88-SEC13-L | JAE M34S75C4F1 | 1099499-00-B | ||
| 12 | BN | 0.35 | SN | X988M-12 | JAE M34S75C4F1 | 1099499-00-B | ||
| 14 | GY | 0.35 | SN | X948M-6 | JAE M34S75C4F1 | 1099499-00-B | ||
| 16 | VT | 0.75 | SN | X955M-20 | JAE M34S75C4F2 | 1099500-00-A | ||
| 17 | GN/WH | 0.35 | SN | X775-21 | JAE M34S75C4F1 | 1099499-00-B | ||
| 19 | GY/WH | 0.35 | SN | X988M-13 | JAE M34S75C4F1 | 1099499-00-B | ||
| 20 | BK | 0.35 | SN | X954M-24 | JAE M34S75C4F1 | 1099499-00-B | ||
| 21 | BU | 0.35 | SN | X988M-23 | JAE M34S75C4F1 | 1099499-00-B | ||
| 22 | RD/YE | 0.5 | SN | X954M-2 | JAE M34S75C4F2 | 1099500-00-A | ||
| 24 | YE | 0.35 | SN | X988M-10 | JAE M34S75C4F1 | 1099499-00-B | ||
| 29 | GN | 0.35 | SN | X578-15 | JAE M34S75C4F1 | 1099499-00-B | ||
| 32 | RD/GY | 0.75 | SN | X955M-12 | JAE M34S75C4F2 | 1099500-00-A |
