X026 - s-rhd-sop10

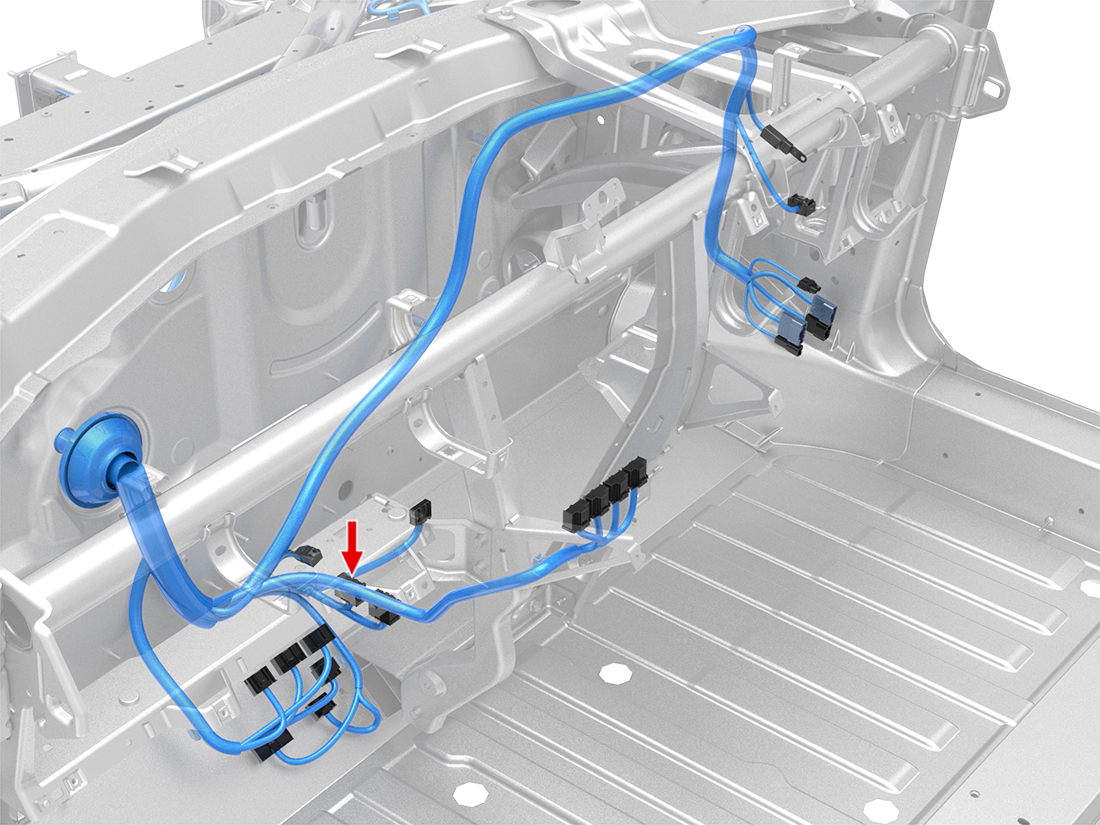

Location:

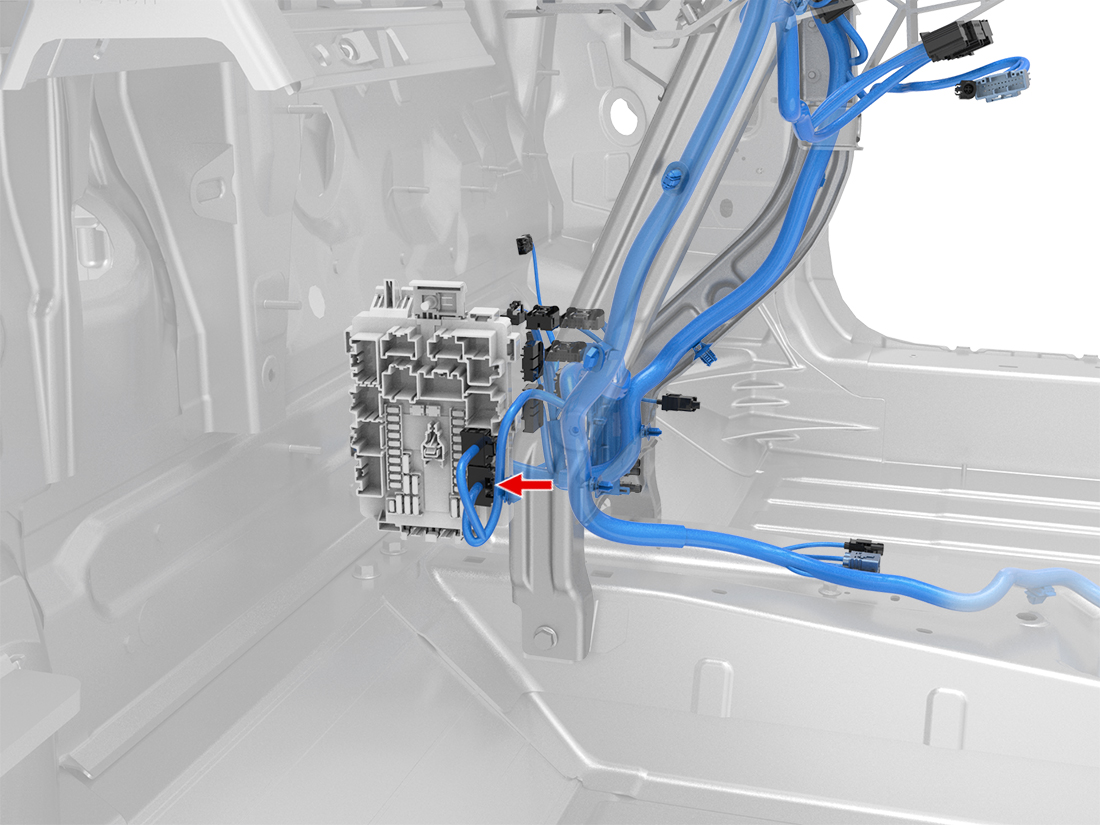

Location:
Location:
Connector Detail: Delphi 13520383
Color: GY
Serviceability: Terminal Pigtail
Connector Detail: Yazaki 7283-6467-40
Color: LightGray
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BK | 2 | SN | G520-1 | Yazaki 7116-4272-02 | 1099564-00-A | ||
| 2 | RD/BK | 1 | SN | X261-6 | Yazaki 7116-4271-02 | 1099563-00-A | ||
| 4 | RD/GY | 1 | SN | X262-6 | Yazaki 7116-4271-02 | 1099563-00-A | ||
| 5 | BU | 0.5 | SN | X563-41 | Yazaki 7116-4270-02 | 1099562-00-A | ||
| 6 | RD/WH | 2 | SN | X563-25 | Yazaki 7116-4272-02 | 1099564-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BN/WH | 0.35 | SN | X060-21 | Delphi 13526680 | 1099481-00-A | ||
| 3 | RD/BU | 0.35 | SN | X926F-17 | Delphi 13526680 | 1099481-00-A | ||
| 4 | BN | 0.5 | SN | X170-12 | Delphi 13526680 | 1099481-00-A | ||
| 5 | GY | 0.35 | SN | X926F-4 | Delphi 13526680 | 1099481-00-A | ||
| 6 | RD/BU | 0.35 | SN | X728-10 | Delphi 13526680 | 1099481-00-A | ||
| 7 | RD | 0.35 | SN | X177-17 | Delphi 13526680 | 1099481-00-A | ||
| 8 | RD/VT | 0.5 | SN | X915F-10 | Delphi 13526680 | 1099481-00-A | ||
| 9 | WH | 0.35 | SN | X170-13 | Delphi 13526680 | 1099481-00-A | ||
| 13 | RD | 0.35 | SN | X728-6 | Delphi 13526680 | 1099481-00-A | ||
| 14 | RD/GN | 0.35 | SN | X562-1 | Delphi 13526680 | 1099481-00-A | ||
| 15 | BU | 0.5 | SN | X170-3 | Delphi 13526680 | 1099481-00-A | ||
| 16 | RD/VT | 0.35 | SN | X180-4 | Delphi 13526680 | 1099481-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BN/WH | 0.35 | SN | X060-21 | Delphi 13526680 | 1099481-00-A | ||
| 3 | RD/BU | 0.35 | SN | X926F-17 | Delphi 13526680 | 1099481-00-A | ||
| 4 | BN | 0.5 | SN | X170-12 | Delphi 13526680 | 1099481-00-A | ||
| 5 | GY | 0.35 | SN | X926F-4 | Delphi 13526680 | 1099481-00-A | ||
| 6 | RD/BU | 0.35 | SN | X728-10 | Delphi 13526680 | 1099481-00-A | ||
| 7 | RD | 0.35 | SN | X177-17 | Delphi 13526680 | 1099481-00-A | ||
| 8 | RD/VT | 0.5 | SN | X915F-10 | Delphi 13526680 | 1099481-00-A | ||
| 9 | WH | 0.35 | SN | X170-13 | Delphi 13526680 | 1099481-00-A | ||
| 13 | RD | 0.35 | SN | X728-6 | Delphi 13526680 | 1099481-00-A | ||
| 14 | RD/GN | 0.35 | SN | X562-1 | Delphi 13526680 | 1099481-00-A | ||
| 15 | BU | 0.5 | SN | X170-3 | Delphi 13526680 | 1099481-00-A | ||
| 16 | RD/VT | 0.35 | SN | X180-4 | Delphi 13526680 | 1099481-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BK | 2 | SN | G520-1 | Yazaki 7116-4272-02 | 1099564-00-A | ||
| 2 | RD/BK | 1 | SN | X261-6 | Yazaki 7116-4271-02 | 1099563-00-A | ||
| 4 | RD/GY | 1 | SN | X262-6 | Yazaki 7116-4271-02 | 1099563-00-A | ||
| 5 | BU | 0.5 | SN | X563-41 | Yazaki 7116-4270-02 | 1099562-00-A | ||
| 6 | RD/WH | 2 | SN | X563-25 | Yazaki 7116-4272-02 | 1099564-00-A |
