X027 - s-rhd-sop10

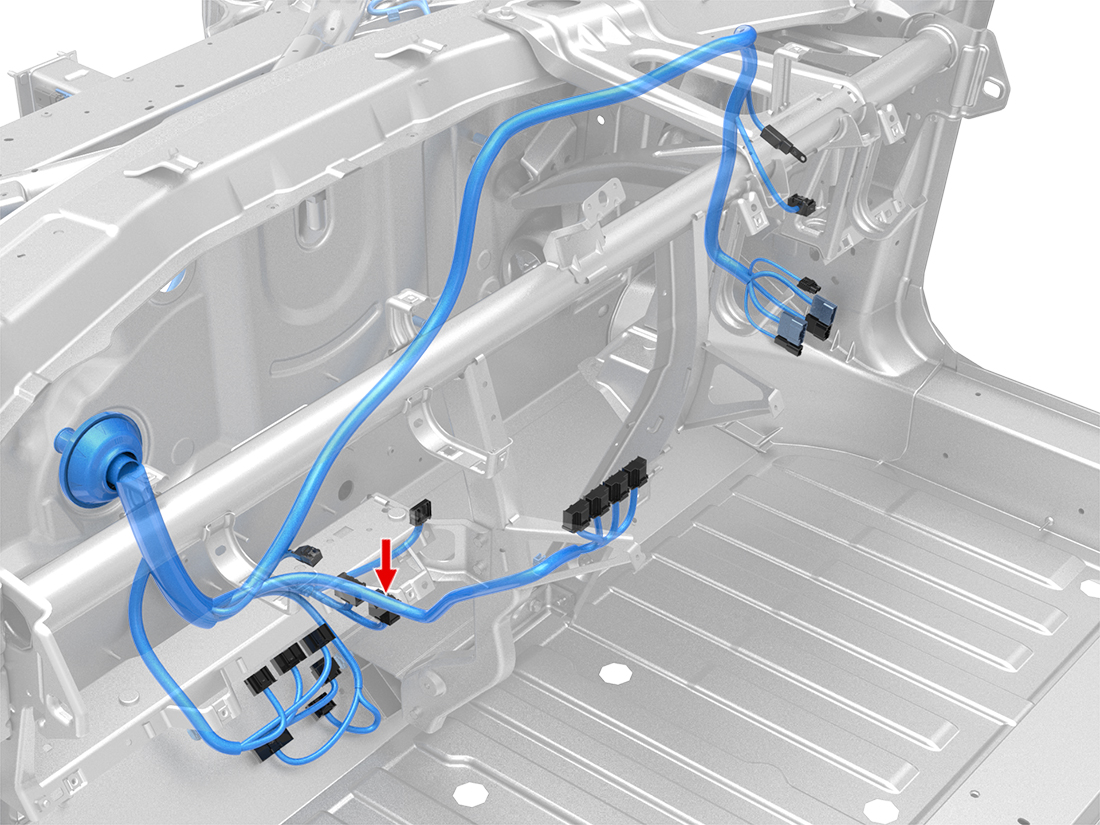

Location:
Location:
Location:
Connector Detail: DELPHI 13544530
Color: Gray
Serviceability: Terminal Pigtail
Connector Detail: Yazaki 7283-3740-40
Color: LightGray
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD/GN | 2 | SN | X563-38 | Yazaki 7116-4121-02 | 1099560-00-A | ||
| 2 | BK | 2 | SN | G520-1 | Yazaki 7116-4121-02 | 1099560-00-A | ||
| 3 | BU/WH | 2 | SN | X563-10 | Yazaki 7116-4121-02 | 1099560-00-A | ||
| 4 | GY/WH | 1.5 | SN | X563-19 | Yazaki 7116-4121-02 | 1099560-00-A | ||
| 5 | RD/VT | 2 | SN | X563-14 | Yazaki 7116-4121-02 | 1099560-00-A | ||
| 6 | RD/WH | 1 | SN | X562-6 | Yazaki 7116-4120-02 | 1099559-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | WH | 1 | SN | X926M-10 | DELPHI 13544536 | 1099484-00-A | ||
| 3 | GN | 1 | SN | X926M-18 | DELPHI 13544536 | 1099484-00-A | ||
| 5 | RD/WH | 1.5 | SN | X924M-14 | DELPHI 13544537 | 1099486-00-A | ||
| 6 | GY | 1.5 | SN | X926M-1 | DELPHI 13544537 | 1099486-00-A | ||
| 7 | BU | 1.5 | SN | X924M-1 | DELPHI 13544537 | 1099486-00-A | ||
| 8 | GN | 0.35 | SN | X912M-15 | DELPHI 13544535 | 1099482-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | WH | 1 | SN | X926M-10 | DELPHI 13544536 | 1099484-00-A | ||
| 3 | GN | 1 | SN | X926M-18 | DELPHI 13544536 | 1099484-00-A | ||
| 5 | RD/WH | 1.5 | SN | X924M-14 | DELPHI 13544537 | 1099486-00-A | ||
| 6 | GY | 1.5 | SN | X926M-1 | DELPHI 13544537 | 1099486-00-A | ||
| 7 | BU | 1.5 | SN | X924M-1 | DELPHI 13544537 | 1099486-00-A | ||
| 8 | GN | 0.35 | SN | X912M-15 | DELPHI 13544535 | 1099482-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD/GN | 2 | SN | X563-38 | Yazaki 7116-4121-02 | 1099560-00-A | ||
| 2 | BK | 2 | SN | G520-1 | Yazaki 7116-4121-02 | 1099560-00-A | ||
| 3 | BU/WH | 2 | SN | X563-10 | Yazaki 7116-4121-02 | 1099560-00-A | ||
| 4 | GY/WH | 1.5 | SN | X563-19 | Yazaki 7116-4121-02 | 1099560-00-A | ||
| 5 | RD/VT | 2 | SN | X563-14 | Yazaki 7116-4121-02 | 1099560-00-A | ||
| 6 | RD/WH | 1 | SN | X562-6 | Yazaki 7116-4120-02 | 1099559-00-A |
