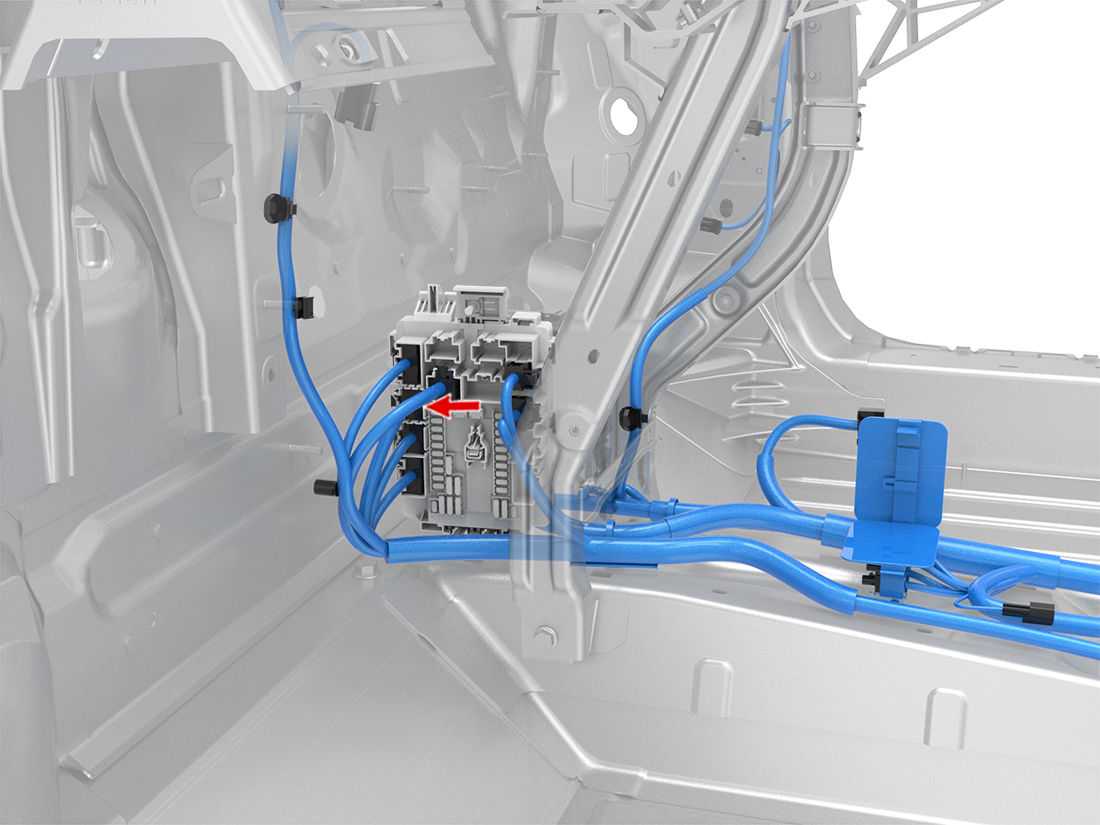

Location:
Connector Detail: DELPHI 13544531
Color: Brown
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 2 | BN | 0.35 | SN | X168-2 | DELPHI 13544535 | | 1099482-00-A | |
| 2 | BN | 0.35 | SN | X168A-2 | DELPHI 13544535 | | 1099482-00-A | |
| 3 | BN | 0.35 | SN | X168-1 | DELPHI 13544535 | | 1099482-00-A | |
| 3 | BN | 0.35 | SN | X168A-1 | DELPHI 13544535 | | 1099482-00-A | |
| 6 | BK | 0.35 | SN | GND_JC_C-3 | DELPHI 13544535 | | 1099482-00-A | |
| 7 | GN | 0.35 | SN | X910M-21 | DELPHI 13544535 | | 1099482-00-A | |
| 8 | RD/VT | 0.35 | SN | X061-9 | DELPHI 13544535 | | 1099482-00-A | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 2 | BN | 0.35 | SN | X168-2 | DELPHI 13544535 | | 1099482-00-A | |
| 2 | BN | 0.35 | SN | X168A-2 | DELPHI 13544535 | | 1099482-00-A | |
| 3 | BN | 0.35 | SN | X168-1 | DELPHI 13544535 | | 1099482-00-A | |
| 3 | BN | 0.35 | SN | X168A-1 | DELPHI 13544535 | | 1099482-00-A | |
| 6 | BK | 0.35 | SN | GND_JC_C-3 | DELPHI 13544535 | | 1099482-00-A | |
| 7 | GN | 0.35 | SN | X910M-21 | DELPHI 13544535 | | 1099482-00-A | |
| 8 | RD/VT | 0.35 | SN | X061-9 | DELPHI 13544535 | | 1099482-00-A | |
