X034 - s-rhd-sop10

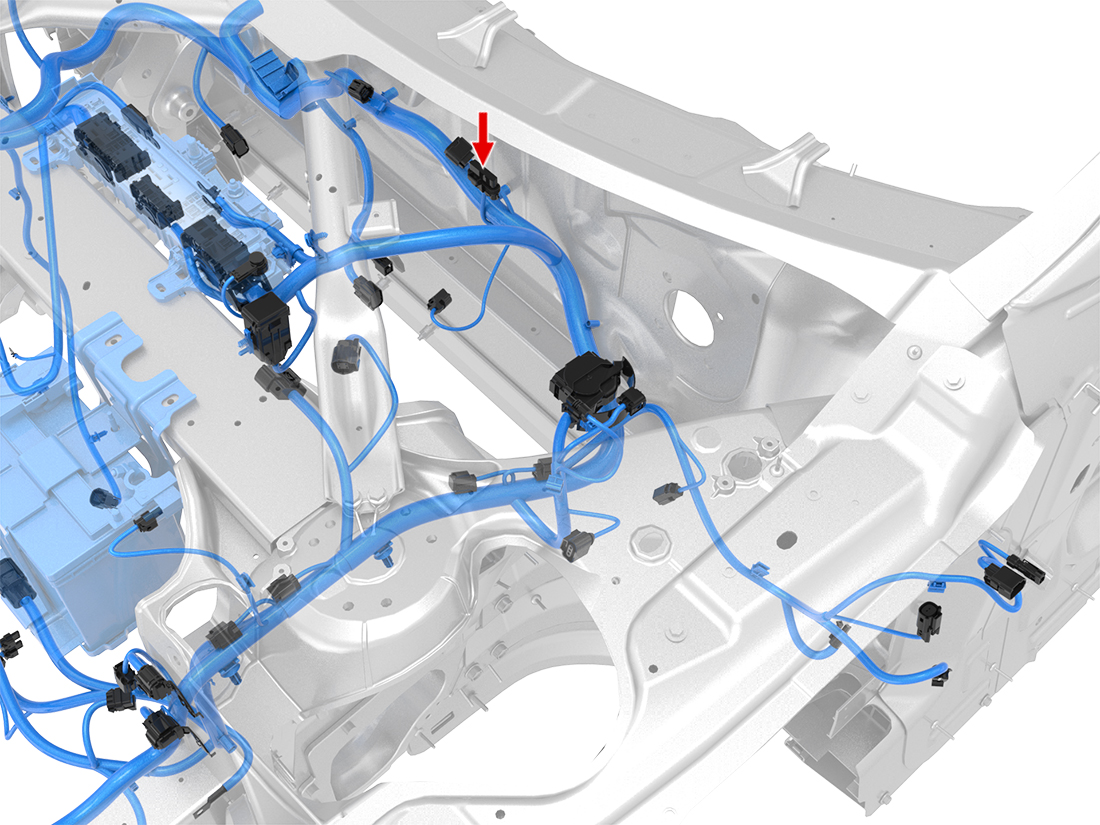

Location:
Location:
Connector Detail: Delphi 12084891
Color: DarkGray
Serviceability: Terminal Pigtail
Connector Detail: CPT KCRT1328-0202AA
Color: SN
Serviceability: Not Serviceable
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| B | VT | 1 | SN | X563-36 | Delphi 12077411 | Delphi 15324985 | 1099476-00-B | |
| C | BK | 2 | SN | G520-1 | Delphi 12077412 | Delphi 15324982 | 1116663-00-B | |
| D | BN | 2 | SN | X563-26 | Delphi 12077412 | Delphi 15324982 | 1116663-00-B | |
| E | RD | 1 | SN | X563-37 | Delphi 12077411 | Delphi 15324985 | 1099476-00-B |
| Cavity | Color | Size | Plate | Destination | Terminal |
|---|---|---|---|---|---|
| 1 | RD/BU | 4 | SN | X088-1 | - |
| Cavity | Color | Size | Plate | Destination | Terminal |
|---|---|---|---|---|---|
| 1 | RD/BU | 4 | SN | X088-1 | - |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| B | VT | 1 | SN | X563-36 | Delphi 12077411 | Delphi 15324985 | 1099476-00-B | |
| C | BK | 2 | SN | G520-1 | Delphi 12077412 | Delphi 15324982 | 1116663-00-B | |
| D | BN | 2 | SN | X563-26 | Delphi 12077412 | Delphi 15324982 | 1116663-00-B | |
| E | RD | 1 | SN | X563-37 | Delphi 12077411 | Delphi 15324985 | 1099476-00-B |
