X036 - s-rhd-sop10

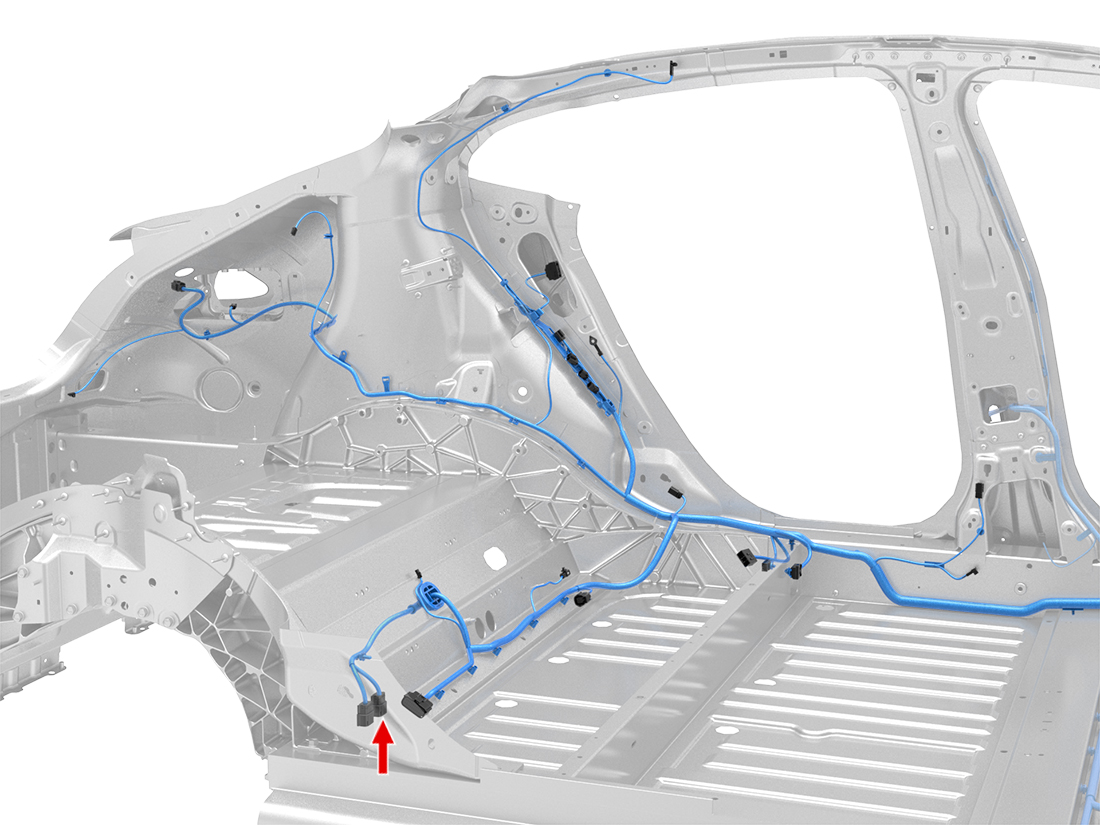

Location:
Location:
Connector Detail: Molex 33472-1202
Color: Gray
Serviceability: Terminal Pigtail
Connector Detail: CPT KCRT1324-0202AA
Color: SN
Serviceability: Not Serviceable
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 2 | RD/BU | 0.35 | SN | X571-1 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 5 | GN | 0.75 | SN | Z78-BMS01_C-L | Molex 33012-3002 | Tesla MAT-120-240 | 1099517-00-A | 1116485-00-A |
| 6 | WH | 0.35 | SN | X571-3 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 7 | YE/WH | 0.35 | SN | Z25-BMS04-L | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 9 | RD | 0.35 | SN | X778-12 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 10 | RD/WH | 0.35 | SN | X778-1 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 11 | RD/YE | 0.5 | SN | X976F-9 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 12 | BK | 0.5 | SN | G720-1 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal |
|---|---|---|---|---|---|
| 1 | RD/BK | 16 | SN | X046-1 | - |
| Cavity | Color | Size | Plate | Destination | Terminal |
|---|---|---|---|---|---|
| 1 | RD/BK | 16 | SN | X046-1 | - |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 2 | RD/BU | 0.35 | SN | X571-1 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 5 | GN | 0.75 | SN | Z78-BMS01_C-R | Molex 33012-3002 | Tesla MAT-120-240 | 1099517-00-A | 1116485-00-A |
| 6 | WH | 0.35 | SN | X571-3 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 7 | YE/WH | 0.35 | SN | Z25-BMS04-R | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 9 | RD | 0.35 | SN | X778-12 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 10 | RD/WH | 0.35 | SN | X778-1 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 11 | RD/YE | 0.5 | SN | X976F-9 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 12 | BK | 0.5 | SN | G720-1 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
